R Recombinant
Recombinant: Superior lot-to-lot consistency, continuous supply, and animal-free manufacturing.

Phospho-Btk (Tyr223) (D1D2Z) Rabbit mAb #87457

Filter:
  • WB
  • IP

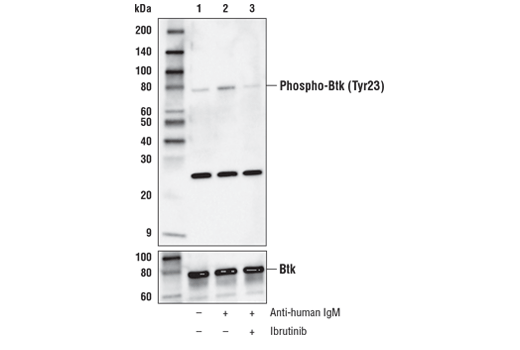

Western Blotting Image 1: Phospho-Btk (Tyr223) (D1D2Z) Rabbit mAb
Western blot analysis of extracts from Daudi cells, serum-starved overnight, then vehicle-treated (lane 1), treated with anti-human IgM (12 μg/ml, 10 min; lane 2), or pre-treated with Ibrutinib #16483 (1 μM, 60 min) prior to anti-IgM treatment (lane 3), using Phospho-Btk (Tyr23) (D1D2Z) Rabbit mAb (upper) or Btk (D6H5) Rabbit mAb #8547 (lower).

To Purchase # 87457

Supporting Data

REACTIVITY H M
SENSITIVITY Endogenous
MW (kDa) 78
Source/Isotype Rabbit IgG
Application Key:
  • WB-Western Blotting
  • IP-Immunoprecipitation
Species Cross-Reactivity Key:
  • H-Human
  • M-Mouse
  • Related Products

Product Information

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:100

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #88632.

Protocol

Specificity / Sensitivity

Phospho-Btk (Tyr223) (D1D2Z) Rabbit mAb recognizes endogenous levels of Btk protein only when phosphorylated at Tyr223. The antibody detects a 26 kDa protein of unknown identity that is not sensitive to treatment with anti-IgM or Ibrutinib.

Species Reactivity:

Human, Mouse

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Tyr223 of human Btk protein.

Background

Bruton's tyrosine kinase (Btk) is a member of the Btk/Tec family of cytoplasmic tyrosine kinases. Like other Btk family members, it contains a pleckstrin homology (PH) domain and Src homology SH3 and SH2 domains. Btk plays an important role in B cell development (1,2). Activation of B cells by various ligands is accompanied by Btk membrane translocation mediated by its PH domain binding to phosphatidylinositol-3,4,5-trisphosphate (3-5). The membrane-localized Btk is active and associated with transient phosphorylation of two tyrosine residues, Tyr551 and Tyr223. Tyr551 in the activation loop is transphosphorylated by the Src family tyrosine kinases, leading to autophosphorylation at Tyr223 within the SH3 domain, which is necessary for full activation (6,7). The activation of Btk is negatively regulated by PKCβ through phosphorylation of Btk at Ser180, which results in reduced membrane recruitment, transphosphorylation, and subsequent activation (8). The PKC inhibitory signal is likely to be a key determinant of the B cell receptor signaling threshold to maintain optimal Btk activity (8).

Pathways

Explore pathways related to this product.
