  3. PathScan® RP Phospho-VEGFR-2 (Tyr1175) Sandwich ELISA Kit

PathScan® RP Phospho-VEGFR-2 (Tyr1175) Sandwich ELISA Kit #7335

Filter:
  • ELISA
ELISA Image 1: PathScan® RP Phospho-VEGFR-2 (Tyr1175) Sandwich ELISA Kit

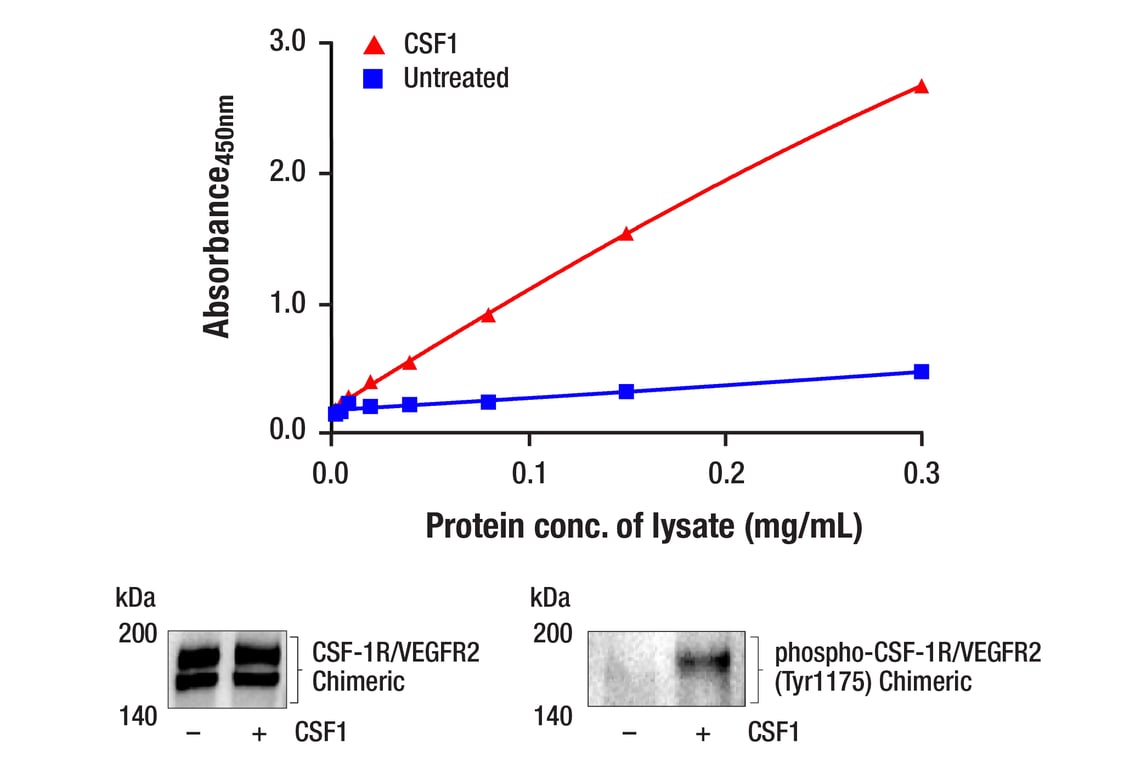

Figure 1: Linear relationship between protein concentration of lysates from PAE/CKR cells expressing a chimeric CSF-1R/VEGFR2 receptor and kit assay optical density readings, as detected by PathScan® RP Phospho-VEGFR-2 (Tyr1175) Sandwich ELISA kit #7335. OD450 readings are shown in the top figure, while the corresponding western blot using Phospho-VEGFR-2 (Tyr1175) Rabbit mAb (right panel) or VEGF Receptor 2 (55B11) Rabbit mAb (left panel), is shown in the bottom figure. PAE/CKR cells (85-90% confluent) were treated with 50ng/ml CSF1 for 5 minutes after overnight serum starvation, and then lysed. PAE/CKR cells overexpress chimeric receptors containing human CSF-1 extracellular binding domain/mouse VEGF receptor 2 intracellular domains (Rahimi, N. et al. [2000] J. Biol. Chem. 275, 16986-16992).
1/2

To Purchase # 7335**

Important Ordering Details

Custom Ordering Details:

If kit quantities from the same lot are needed in unlisted sizes, contact us for processing time and pricing.

Looking for this ELISA kit in a 384-well format? Inquire for availability, processing time, and pricing.

Supporting Data

REACTIVITY H M
Application Key:
  • ELISA-ELISA
Species Cross-Reactivity Key:
  • H-Human
  • M-Mouse
  • Product Includes
  • Related Products
Product IncludesVolumeSolution Color
VEGF Receptor 2 Rabbit mAb Coated Microwells #4114196 tests
Phospho-VEGF Receptor 2 (Tyr1175) Rabbit Detection mAb #137591 eaRed (Lyophilized)
HRP Diluent #135155.5 mlRed
TMB Substrate #700411 ml
STOP Solution #700211 ml
Sealing Tape #545032 ea
ELISA Wash Buffer (20X) #980125 ml
Cell Lysis Buffer (10X) #980315 ml

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Product Information

Product Description

The rapid protocol PathScan® RP Phospho-VEGFR-2 (Tyr1175) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of Phospho-VEGFR-2 (Tyr1175) protein in a reduced assay time of 1.5 hours.

Incubation of cell lysates and detection antibody on the coated microwell plate forms a sandwich with VEGFR2 protein phosphorylated at Tyr1175 in a single step. The plate is then extensively washed and TMB reagent is added for signal development. The magnitude of absorbance for the developed color is proportional to the quantity of VEGFR2 protein phosphorylated at Tyr1175. Learn more about all of your ELISA kit options here.



*Antibodies in kit are custom formulations specific to kit.


Protocol

Specificity / Sensitivity

The PathScan® RP Phospho-VEGFR-2 (Tyr1175) Sandwich ELISA Kit detects endogenous levels of VEGFR2 protein phosphorylated at Tyr1175. The kit sensitivity is shown in Figure 1 (mouse) and Figure 2 (human). This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Species Reactivity:

Human, Mouse

Background

Vascular endothelial growth factor receptor 2 (VEGFR2, KDR, Flk-1) is a major receptor for VEGF-induced signaling in endothelial cells. Upon ligand binding, VEGFR2 undergoes autophosphorylation and becomes activated (1). Major autophosphorylation sites of VEGFR2 are located in the kinase insert domain (Tyr951/996) and in the tyrosine kinase catalytic domain (Tyr1054/1059) (2). Activation of the receptor leads to rapid recruitment of adaptor proteins, including Shc, GRB2, PI3 kinase, NCK, and the protein tyrosine phosphatases SHP-1 and SHP-2 (3). Phosphorylation at Tyr1212 provides a docking site for GRB2 binding and phospho-Tyr1175 binds the p85 subunit of PI3 kinase and PLCγ, as well as Shb (1,4,5). Signaling from VEGFR2 is necessary for the execution of VEGF-stimulated proliferation, chemotaxis and sprouting, as well as survival of cultured endothelial cells in vitro and angiogenesis in vivo (6-8).

Pathways

Explore pathways related to this product.


Database Links

UniProt ID: P35968


Entrez-Gene Id: 3791


限制使用

除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。

专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

For Research Use Only. Not For Use In Diagnostic Procedures.
