  1. Products /
  2. ELISA Kits /
  3. PathScan® Phospho-DDR1 (panTyr) Sandwich ELISA Kit

PathScan® Phospho-DDR1 (panTyr) Sandwich ELISA Kit #7863

Filter:
  • ELISA
ELISA Image 1: PathScan® Phospho-DDR1 (panTyr) Sandwich ELISA Kit

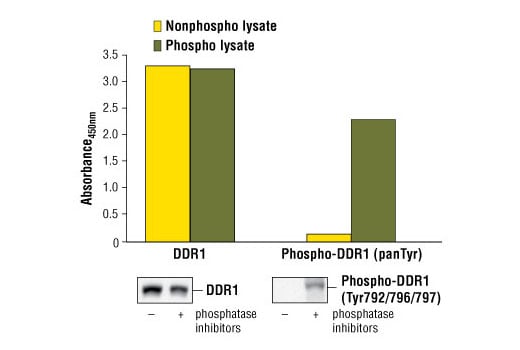

Figure 1: Constitutive phosphorylation of DDR1 in Calu-3 cells lysed in the presence of phosphatase inhibitors* (phospho lysate) is detected by PathScan® Phospho-DDR1 (panTyr) Sandwich ELISA Kit #7863 (upper, right). In contrast, a low level of phospho-DDR1 protein is detected in Calu-3 cells lysed in the absence of phosphatase inhibitors* (nonphospho lysate). Similar levels of total DDR1 protein from both nonphospho and phospho lysates are detected by PathScan® Total DDR1 Sandwich ELISA Kit #7845 (upper, left). Absorbance at 450 nm is shown in the top figure while corresponding western blots using a Phospho-DDR1 (Tyr792/796/797) rabbit antibody (right) or a total DDR1 rabbit antibody (left) are shown in the bottom figure. *Phosphatase inhibitors include sodium pyrophosphate, β-glycerophosphate and Na3VO4.
1/2

To Purchase # 7863**

Important Ordering Details

Custom Ordering Details:

If kit quantities from the same lot are needed in unlisted sizes, contact us for processing time and pricing.

Looking for this ELISA kit in a 384-well format? Inquire for availability, processing time, and pricing.

Supporting Data

REACTIVITY H
Application Key:
  • ELISA-ELISA
Species Cross-Reactivity Key:
  • H-Human
  • Product Includes
  • Related Products
Product IncludesVolumeSolution Color
DDR1 Rabbit mAb Coated Microwells #8360596 tests
Phospho Tyrosine Mouse Detection mAb #129821 eaGreen (Lyophilized)
Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated) #133041 eaRed (Lyophilized)
Detection Antibody Diluent #1333911 mlGreen
HRP Diluent #1351511 mlRed
TMB Substrate #700411 ml
STOP Solution #700211 ml
Sealing Tape #545032 ea
ELISA Wash Buffer (20X) #980125 ml
ELISA Sample Diluent #1108325 mlBlue
Cell Lysis Buffer (10X) #980315 ml

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Product Information

Product Description

The PathScan® Phospho-DDR1 (panTyr) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of tyrosine-phosphorylated DDR1 protein. A DDR1 rabbit antibody has been coated on the microwells. After incubation with cell lysates, DDR1 protein (phospho and nonphospho) is captured by the coated antibody. Following extensive washing, a phospho-tyrosine mouse mAb is added to detect captured tyrosine-phosphorylated DDR1 protein. Anti-mouse IgG, HRP-linked antibody is then used to recognize the bound detection antibody. HRP substrate TMB is added to develop color. The magnitude of the absorbance for this developed color is proportional to the quantity of DDR1 protein phosphorylated on tyrosine residues.

*Antibodies in this kit are custom formulations specific to kit.

Protocol

Specificity / Sensitivity

PathScan® Phospho-DDR1 (panTyr) Sandwich ELISA Kit detects endogenous levels of tyrosine-phosphorylated DDR1 protein in human cells, as shown in Figure 1. The kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Species Reactivity:

Human

Background

The discoidin domain receptors (DDRs) are receptor tyrosine kinases with a discoidin homology repeat in their extracellular domains, activated by binding to extracellular matrix collagens. So far, two mammalian DDRs have been identified: DDR1 and DDR2 (1). They are widely expressed in human tissues and may have roles in smooth muscle cell-mediated collagen remodeling (2). Research studies have implicated aberrant expression and signaling of DDRs in human diseases related to increased matrix degradation and remodeling, such as cardiovascular disease, liver fibrosis, and tumor invasion (1).

Pathways

Explore pathways related to this product.


Database Links

UniProt ID: Q08345


Entrez-Gene Id: 780
