FastScan Phospho-SLP-76 (Ser376) ELISA Kit #30794

Filter:
  • ELISA
ELISA Image 1: FastScan™ Phospho-SLP-76 (Ser376) ELISA Kit

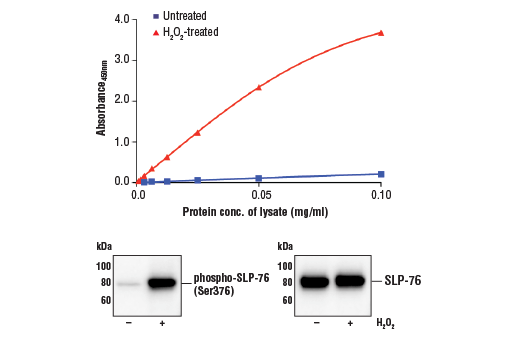

Figure 1. Treatment of Jurkat cells with H2O2 stimulates phosphorylation of SLP-76 at Ser376, but does not affect the level of total SLP-76 protein. The relationship between lysate protein concentration from untreated and H2O2-treated Jurkat cells and the absorbance at 450 nm using the FastScan™ Phospho-SLP-76 (Ser376) ELISA Kit #30794 is shown in the upper figure. The corresponding western blots using phospho-SLP-76 (Ser376) antibody (left panel) and SLP-76 antibody (right panel) are shown in the lower figure. After serum starvation, Jurkat cells were either left untreated or treated with 11 mM H2O2 for 3 minutes at 37°C and then lysed.

To Purchase # 30794**

Important Ordering Details

Custom Ordering Details:

If kit quantities from the same lot are needed in unlisted sizes, contact us for processing time and pricing.

Looking for this ELISA kit in a 384-well format? Inquire for availability, processing time, and pricing.

Supporting Data

REACTIVITY H M
Application Key:
  • ELISA-ELISA
Species Cross-Reactivity Key:
  • H-Human
  • M-Mouse
  • Product Includes
  • Related Products
Product IncludesVolume (with Count)Solution Color
FastScan™ ELISA Microwell Strip Plate, 96 Well #532571 x 96 tests
SLP-76 Rabbit Capture mAb #579971 x 1 eaGreen (Lyophilized)
Phospho-SLP-76 (Ser376) Mouse HRP-linked mAb #731601 x 1 eaRed (Lyophilized)
FastScan™ ELISA Capture Antibody Diluent #160761 x 3 mlGreen
FastScan™ ELISA HRP Antibody Diluent #281201 x 3 ml
TMB Substrate #70041 x 11 ml
STOP Solution #70021 x 11 ml
Sealing Tape #545031 x 1 ea
ELISA Wash Buffer (20X) #98011 x 25 ml
FastScan™ ELISA Cell Extraction Buffer (5X) #699051 x 10 ml
FastScan™ ELISA Cell Extraction Enhancer Solution (50X) #252431 x 1 ml
FastScan™ ELISA Kit #30794 Positive Control Type 1 #775951 x 1 ea

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Product Information

Product Description

The FastScan™ Phospho-SLP-76 (Ser376) ELISA Kit is a sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of SLP-76 when phosphorylated at Ser376. To perform the assay, sample is incubated with a capture antibody conjugated with a proprietary tag and a second detection antibody linked to HRP, forming a sandwich with phospho-SLP-76 (Ser376) in solution. This entire complex is immobilized to the plate via an anti-tag antibody. The wells are then washed to remove unbound material. TMB is then added. The magnitude of observed signal is proportional to the quantity of phospho-SLP-76 (Ser376).

*Antibodies in this kit are custom formulations specific to kit.

Protocol

Specificity / Sensitivity

The FastScan™ Phospho-SLP-76 (Ser376) ELISA Kit detects endogenous levels of SLP-76 when phosphorylated at Ser376 as shown in Figure 1. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Species Reactivity:

Human, Mouse

Background

SH2 domain-containing leukocyte protein of 76 kDa (SLP-76) is a hematopoietic adaptor protein that is important in multiple biochemical signaling pathways and necessary for T cell development and activation (1). ZAP-70 phosphorylates SLP-76 and LAT as a result of TCR ligation. SLP-76 has amino-terminal tyrosine residues followed by a proline-rich domain and a carboxy-terminal SH2 domain. Phosphorylation of Tyr113 and Tyr128 result in recruitment of the GEF Vav and the adaptor protein Nck (2). TCR ligation also leads to phosphorylation of Tyr145, which mediates an association between SLP-76 and Itk, which is accomplished in part via the proline-rich domain of SLP-76 and the SH3 domain of Itk (3). Furthermore, the proline-rich domain of SLP-76 binds to the SH3 domains of Grb2-like adaptor Gads (3,4). In resting cells, SLP-76 is predominantly in the cytosol. Upon TCR ligation, SLP-76 translocates to the plasma membrane and promotes the assembly of a multi-protein signaling complex that includes Vav, Nck, Itk, and PLCγ1 (1). The expression of SLP-76 is tightly regulated; the protein is detected at very early stages of thymocyte development, increases as thymocyte maturation progresses, and is reduced as cells mature to CD4+ CD8+ double-positive thymocytes (5).

Pathways

Explore pathways related to this product.


For Research Use Only. Not For Use In Diagnostic Procedures.
