SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005
Filter:
- ChIP
Product Information
Storage
Please store components at the temperatures indicated on the individual tube labels.
Protocol
Product Description
The SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005 is a complete ChIP kit. It contains the buffers and reagents necessary to perform up to 30 chromatin immunoprecipitations from cells or tissue samples, and is optimized for 4 X 106 cells or 25 mg of tissue per immunoprecipitation. A complete assay can be performed in as little as two days and can easily be scaled up or down for use with more or less cells or tissue sample. This kit is compatable with ChIP-seq.
Cells or tissue are fixed with formaldehyde and lysed, and chromatin is fragmented by partial digestion with Micrococcal Nuclease to obtain chromatin fragments of 1 to 5 nucleosomes. Enzymatic fragmentation of chromatin is much milder than sonication and eliminates problems resulting from variability in sonication power and emulsification of chromatin during sonication, which can result in incomplete fragmentation of chromatin or loss of antibody epitopes due to protein denaturation and degradation. Chromatin immunoprecipitations are performed using ChIP-validated antibodies and ChIP-Grade Protein G Magnetic Beads. After reversal of protein-DNA cross-links, the DNA is purified using DNA purification spin columns, allowing for easy and efficient recovery of DNA and removal of protein contaminants without the need for phenol/chloroform extractions and ethanol precipitations. The enrichment of particular DNA sequences during immunoprecipitation can be analyzed by a variety of methods, including standard PCR, quantitative real-time PCR, or amplification for ChIP on chip, sequencing or cloning techniques. This kit is compatible with ChIP-seq.
The SimpleChIP® Plus Kit also provides important controls to ensure a successful ChIP experiment. The #9005 ChIP kit contains a positive control Histone H3 Antibody, a negative control Normal Rabbit IgG Antibody and primer sets for PCR detection of the human and mouse ribosomal protein L30 (RPL30) genes. Histone H3 is a core component of chromatin and is bound to most DNA sequences throughout the genome, including the RPL30 locus. Thus, the Histone H3 Antibody provides a universal positive control that should enrich for almost any locus examined.
Cells or tissue are fixed with formaldehyde and lysed, and chromatin is fragmented by partial digestion with Micrococcal Nuclease to obtain chromatin fragments of 1 to 5 nucleosomes. Enzymatic fragmentation of chromatin is much milder than sonication and eliminates problems resulting from variability in sonication power and emulsification of chromatin during sonication, which can result in incomplete fragmentation of chromatin or loss of antibody epitopes due to protein denaturation and degradation. Chromatin immunoprecipitations are performed using ChIP-validated antibodies and ChIP-Grade Protein G Magnetic Beads. After reversal of protein-DNA cross-links, the DNA is purified using DNA purification spin columns, allowing for easy and efficient recovery of DNA and removal of protein contaminants without the need for phenol/chloroform extractions and ethanol precipitations. The enrichment of particular DNA sequences during immunoprecipitation can be analyzed by a variety of methods, including standard PCR, quantitative real-time PCR, or amplification for ChIP on chip, sequencing or cloning techniques. This kit is compatible with ChIP-seq.
The SimpleChIP® Plus Kit also provides important controls to ensure a successful ChIP experiment. The #9005 ChIP kit contains a positive control Histone H3 Antibody, a negative control Normal Rabbit IgG Antibody and primer sets for PCR detection of the human and mouse ribosomal protein L30 (RPL30) genes. Histone H3 is a core component of chromatin and is bound to most DNA sequences throughout the genome, including the RPL30 locus. Thus, the Histone H3 Antibody provides a universal positive control that should enrich for almost any locus examined.
Specificity / Sensitivity

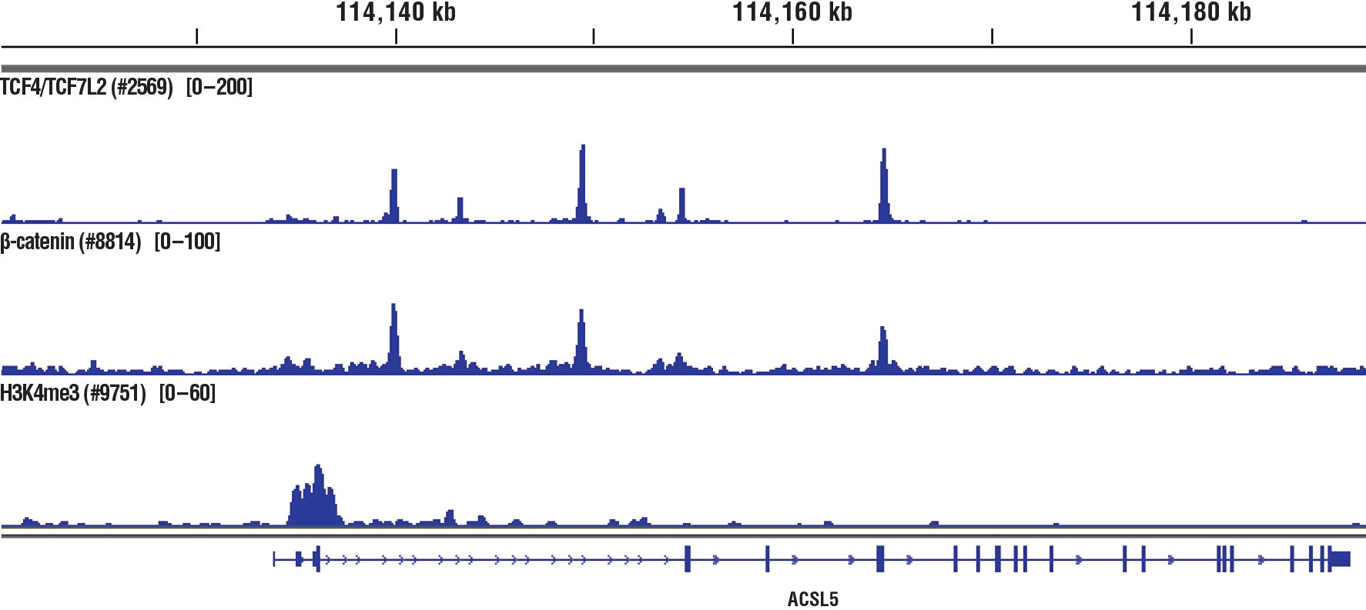

The SimpleChIP® Plus Enzymatic Chromatin IP Kit can be utilized with any ChIP-validated antibody to detect endogenous levels of protein-DNA interactions and histone modifications in mammalian cells and tissue samples (see Figures 1-6). The positive control Histone H3 Antibody recognizes many different species of the highly conserved Histone H3 protein, including human, mouse, rat and monkey. Primer sets are included for the human and mouse positive control RPL30 gene loci; however, the use of other species with the kit requires the design of additional control primer sets.
Background
The chromatin immunoprecipitation (ChIP) assay is a powerful and versatile technique used for probing protein-DNA interactions within the natural chromatin context of the cell (1,2). This assay can be used to identify multiple proteins associated with a specific region of the genome, or the opposite, to identify the many regions of the genome bound by a particular protein (3-6). It can be used to determine the specific order of recruitment of various proteins to a gene promoter or to "measure" the relative amount of a particular histone modification across an entire gene locus (3,4). In addition to histone proteins, the ChIP assay can be used to analyze binding of transcription factors and co-factors, DNA replication factors and DNA repair proteins. When performing the ChIP assay, cells or tissues are first fixed with formaldehyde, a reversible protein-DNA cross-linking agent that "preserves" the protein-DNA interactions occurring in the cell (1,2). Cells are lysed and chromatin is harvested and fragmented using either sonication or enzymatic digestion. The chromatin is then immunoprecipitated with antibodies specific to a particular protein or histone modification. Any DNA sequences that are associated with the protein or histone modification of interest will co-precipitate as part of the cross-linked chromatin complex and the relative amount of that DNA sequence will be enriched by the immunoselection process. After immunoprecipitation, the protein-DNA cross-links are reversed and the DNA is purified. Standard PCR or Quantitative Real-Time PCR can be used to measure the amount of enrichment of a particular DNA sequence by a protein-specific immunoprecipitation (1,2). Alternatively, the ChIP assay can be combined with genomic tiling micro-array (ChIP on chip) techniques, high throughput sequencing, or cloning strategies, all of which allow for genome-wide analysis of protein-DNA interactions and histone modifications (5-8).
- Orlando, V. (2000) Trends Biochem Sci 25, 99-104.
- Liu, Q. et al. (2000) Genes Dev 14, 1448-59.
- Kuo, M.H. and Allis, C.D. (1999) Methods 19, 425-33.
- Zhao, H. and Piwnica-Worms, H. (2001) Mol Cell Biol 21, 4129-39.
- Agalioti, T. et al. (2000) Cell 103, 667-78.
- Jiang, K. et al. (2003) J Biol Chem 278, 25207-17.
- Soutoglou, E. and Talianidis, I. (2002) Science 295, 1901-4.
- Martin, S.A. and Ouchi, T. (2008) Mol Cancer Ther 7, 2509-16.
- Mikkelsen, T.S. et al. (2007) Nature 448, 553-60.
- Chen, M.S. et al. (2003) Mol Cell Biol 23, 7488-97.
- Lee, T.I. et al. (2006) Cell 125, 301-13.
- Zeng, Y. et al. (1998) Nature 395, 507-10.
- Weinmann, A.S. and Farnham, P.J. (2002) Methods 26, 37-47.
- Löffler, H. et al. (2006) Cell Cycle 5, 2543-7.
- Wells, J. and Farnham, P.J. (2002) Methods 26, 48-56.
- Zachos, G. et al. (2007) Dev Cell 12, 247-60.
- Garber, K. (2005) J Natl Cancer Inst 97, 1026-8.
Product Citations: 20
- Mukherjee, S.P. et al. (2013) PLoS Biol 11, e1001647.
- Masuda, T. et al. (2014) Nat Commun 5, 3771.
- Aida-Yasuoka, K. et al. (2014) Toxicol Sci , .
- van Loo, K.M. et al. (2015) Nat Commun 6, 8688.
- Hayashi, H. et al. (2015) Cancer Res 75, 4985-97.
- Chen, W.X. et al. (2016) Oncotarget , .
- Zeng, H. et al. (2016) Cancer Cell 30, 459-473.
- Wang, J. et al. (2016) Sci Signal 9, ra12.
- Li, D. et al. (2016) Oncotarget , .
- Wang, Y.F. et al. (2017) Nat Commun 8, 274.
- Fujita, K. et al. (2017) Nat Commun 8, 1864.
- Hasan, Z. et al. (2017) Nat Commun 8, 15628.
- Huang, X. et al. (2018) Cell 175, 186-199.e19.
- Yu, W. et al. (2019) Mol Cell 75, 1147-1160.e5.
- Bhat, K. et al. (2020) Proc Natl Acad Sci U S A 117, 11085-11096.
- Singh, N. et al. (2021) Nat Commun 12, 7349.
- Li, G. et al. (2021) Nat Cell Biol 23, 526-537.
- Wu, L. et al. (2022) Theranostics 12, 842-858.
- Gao, P. et al. (2022) Front Oncol 12, 823377.
- Yu, B. et al. (2022) Nat Commun 13, 2192.
限制使用
除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。
专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专
For Research Use Only. Not For Use In Diagnostic Procedures.
