CAR (Whitlow/218 Linker) Antigen Density Quantitation Kit (PE) #33709

    Product Information

    Protocol

    Product Description

    The CAR (Whitlow/218 Linker) Antigen Density Quantitation Kit (PE) enables the quantitative analysis of chimeric antigen receptor (CAR) surface expression on cells that are engineered to express a Whitlow/218 linker-containing single-chain variable fragment (scFv)-based CAR. The kit contains bead populations surface labeled with increasing amounts of phycoerythrin (PE) calibrated in molecules of equivalent soluble fluorochrome (MESF) units. Analyzing the beads on a flow cytometer enables the generation of a calibration curve that relates instrument geometric mean or median fluorescence intensity (MFI) to standardized MESF units. Because the beads are surface labeled with the actual fluorochrome conjugated to the antibodies used to stain cells, the standards are environmentally responsive (e.g., to pH, temperature, etc.). Quantitative assignments are truly relevant when run on the same day, at the same instrument settings (e.g., PMT voltages, compensation), and in the same buffer formulation as the cell samples. The PE-conjugated antibody included in this kit was purified to have an average degree of label (DOL) of approximately 1.0.

    Assuming monovalent antibody-to-CAR binding, the MESF values after subtracting background will equate to the number of CAR molecules on the cell surface.

    This Cell Signaling Technology® antibody is conjugated to PE under optimal conditions and tested in-house for direct flow cytometric analysis in human cells. This antibody conjugate is expected to exhibit the same reactivity as the unconjugated Whitlow/218 Linker (E3U7Q) Rabbit mAb #57710, which is expected to react with cell surface expressed CARs of varying specificity containing a Whitlow/218 linker within the scFv of the extracellular domain.

    Bead Specifications

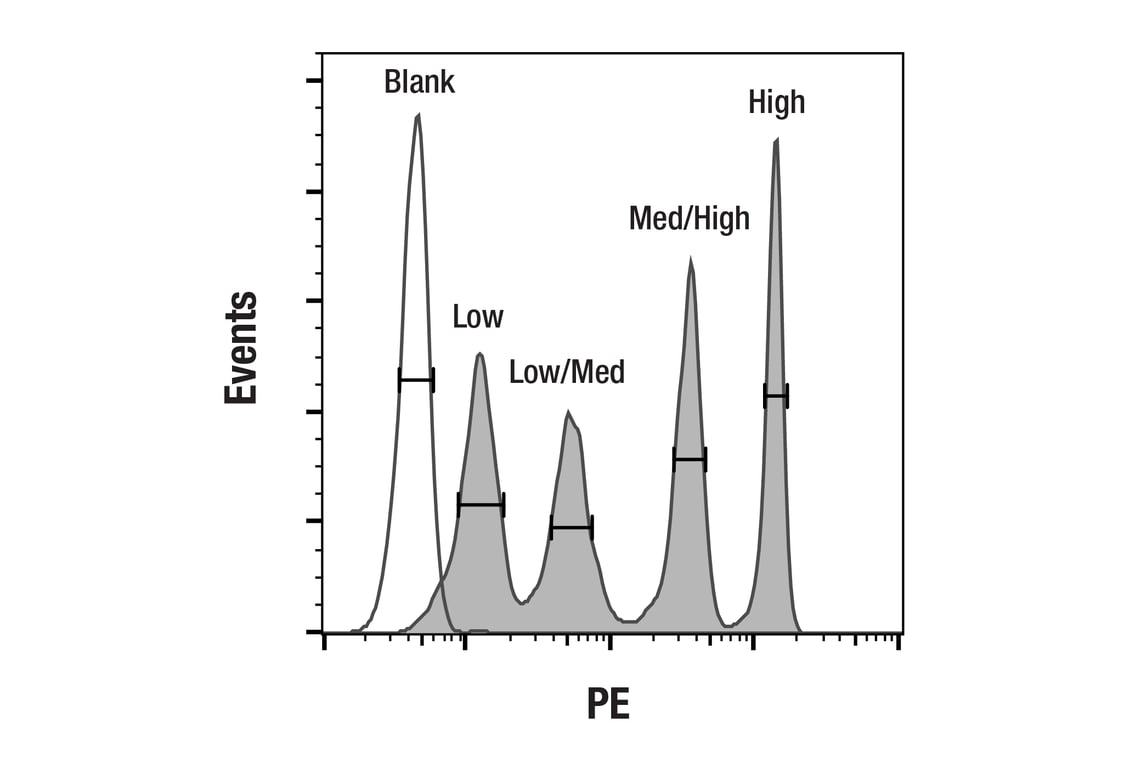

    Calibration beads are polystyrene microspheres with a mean diameter of 6-9 μm, unlabeled or labeled with increasing amounts of PE calibrated in MESF units. The beads are supplied in dropper bottles at a concentration of approximately 2 x 106 beads/mL.

    Specificity / Sensitivity

    Whitlow/218 Linker (E3U7Q) Rabbit mAb (PE Conjugate) recognizes exogenously expressed levels of scFv-based CARs containing a Whitlow/218 linker.

    Species Reactivity:

    All Species Expected

    Background

    The stoichiometric relationship between surface expressed scFv-based chimeric antigen receptors (CARs) and their cognate antigens expressed on target cells is a critical determinant of the efficacy of CAR-engineered immune cells. As such, accurate measurement of CAR density on the cell surface is of paramount importance to assess how changes to CAR structure and cell engineering protocols affect CAR expression (1-15).

    The Whitlow/218 peptide is a commonly used linker that connects the variable heavy (VH) domain and variable light (VL) domain of single-chain variable fragments (scFvs) and CARs that utilize an extracellular domain scFv for target antigen recognition. The Whitlow/218 linker affords the scFv with enhanced resistance to proteolysis and aggregation (16).
    1. Gratama, J.W. et al. (1997) Cytometry 30, 10-22.
    2. Kay, S. et al. (2006) Cytometry B Clin Cytom 70, 218-26.
    3. Schwartz, A. et al. (1996) Cytometry 26, 22-31.
    4. Iannone, M.A. et al. (2003) Methods Mol Biol 226, 123-34.
    5. Mizutani, K. et al. (2007) Am J Transplant 7, 1027-31.
    6. Baerlocher, G.M. et al. (2006) Nat Protoc 1, 2365-76.
    7. Wood, J.C. and Hoffman, R.A. (1998) Cytometry 33, 256-9.
    8. Chan, K.W. et al. (2004) Anal Biochem 334, 227-33.
    9. Vaidya, S. (2008) Transplantation 85, 1046-50.
    10. Schwartz, A. and Fernández-Repollet, E. (1993) Ann N Y Acad Sci 677, 28-39.
    11. Zagursky, R.J. et al. (1995) Biotechniques 18, 504-9.
    12. Lenkei, R. and Andersson, B. (1995) J Immunol Methods 183, 267-77.
    13. Denny, T.N. et al. (1996) Cytometry 26, 265-74.
    14. Borowitz, M.J. et al. (1997) Blood 89, 3960-6.
    15. Schwartz, A. et al. (1998) Cytometry 33, 106-14.
    16. Whitlow, M. et al. (1993) Protein Eng 6, 989-95.

    限制使用

    除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。

    专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

    For Research Use Only. Not For Use In Diagnostic Procedures.
