  3. Whitlow/218 Linker (E3U7Q) F(ab')<sub>2</sub> Fragment (Alexa Fluor® 647 Conjugate)
R Recombinant
Recombinant: Superior lot-to-lot consistency, continuous supply, and animal-free manufacturing.

Whitlow/218 Linker (E3U7Q) F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #47375

Filter:
  • F

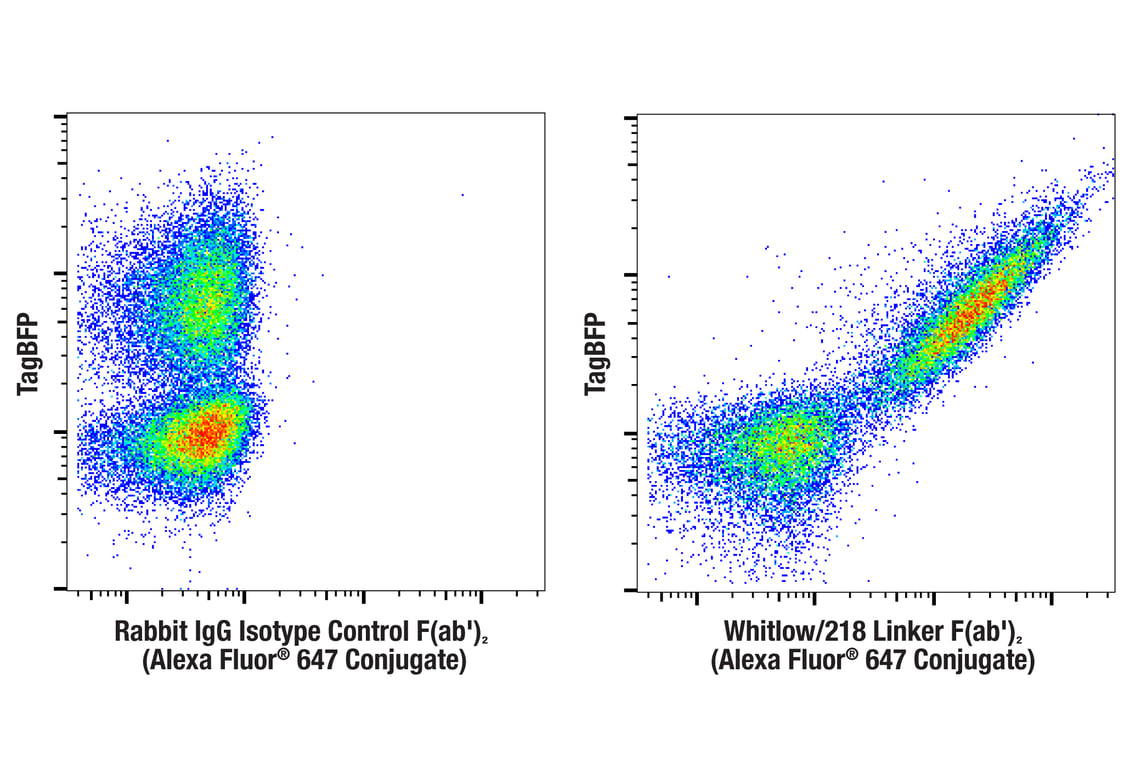

Flow Cytometry Image 1: Whitlow/218 Linker (E3U7Q) F(ab')<sub>2</sub> Fragment (Alexa Fluor® 647 Conjugate)
Flow cytometric analysis of a mixed population containing live wild-type Jurkat cells and Jurkat cells engineered to express an scFv-based Anti-CD20 CAR containing a Whitlow/218 linker using Whitlow/218 Linker (E3U7Q) F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) (right) or concentration-matched Rabbit (DA1E) IgG XP® Isotype Control F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #93671 (left). Tag Blue fluorescent protein (TagBFP) is co-expressed with the CAR. Cell line was provided by the Lohmueller Lab, University of Pittsburgh.
1/2

To Purchase # 47375

Supporting Data

REACTIVITY All
SENSITIVITY Transfected Only
MW (kDa)
Source/Isotype Rabbit IgG
Application Key:
  • F-Flow Cytometry
Species Cross-Reactivity Key:
  • All-All Species Expected
  • Related Products

Product Information

Product Description

This Cell Signaling Technology® F(ab’)2 fragment lacks an Fc domain, and will not exhibit reactivity with human Fc receptors. This eliminates the need for Fc blocking and reduces false positives in assays containing human monocytes or other cells with high expression of Fc receptors.

The F(ab')2 fragment is generated by enzymatic digestion of the full-length IgG clone coupled with chromatography to remove both the Fc fragment and the intact IgG. The F(ab’)2 fragment is conjugated to Alexa Fluor® 647 fluorescent dye under optimal conditions.

Product Usage Information

Application Dilution
Flow Cytometry (Live) 1:50

Storage

Supplied in PBS (pH 7.2), less than 0.1% sodium azide, and 2 mg/mL BSA. Store at 4°C. Do not aliquot the antibody. Protect from light. Do not freeze.

Protocol

Specificity / Sensitivity

Whitlow/218 Linker F(ab')2 fragment (Alexa Fluor® 647 Conjugate) recognizes exogenously expressed levels of scFv-based CARs containing a Whitlow/218 linker. This F(ab')2 fragment contains no Fc domain and will not exhibit cross-reactivity with Fc receptors.

Species Reactivity:

All Species Expected

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues of the Whitlow/218 linker peptide.

Background

The Whitlow/218 peptide is a commonly used linker that connects the variable heavy (VH) domain and variable light (VL) domain of single-chain variable fragments (scFvs) and chimeric antigen receptors (CARs) that utilize an extracellular domain scFv for target antigen recognition. The Whitlow/218 linker affords the scFv with enhanced resistance to proteolysis and aggregation (1).

Human Fc receptors exhibit strong cross-reactivity with rabbit IgG, and are expressed at high levels on cells of myeloid lineage (e.g., monocytes and myeloid-derived cell lines). Fluorescent anti-linker F(ab')2 fragment conjugates are ideal for use in flow cytometry assays on cells containing Fc receptors, and eliminate the need for an Fc blocking step prior to antibody incubation.

Cell Signaling Technology employs strict quality control procedures to ensure that each conjugate provides optimal specificity and fluorescence.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。

专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

For Research Use Only. Not For Use In Diagnostic Procedures.
