Revision 1

#13571

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IP

Reactivity:
H M R

Sensitivity:
Endogenous

MW (kDa):
49

Source/Isotype:
Rabbit

UniProt ID:
#Q9Y4P8

Entrez-Gene Id:
26100

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:100

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA and 50% glycerol. Store at –20°C. Do not aliquot the antibody.

Specificity/Sensitivity

Phospho-WIPI2 (Ser413) recognizes endogenous levels of WIPI2 protein only when phosphorylated at Ser413.

Source / Purification

Polyclonal antibodies are produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Ser413 of human WIPI2 protein. Antibodies are purified by protein A and peptide affinity chromatography.

Background

Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). It is generally activated by conditions of nutrient deprivation but is also associated with a number of physiological processes, including development, differentiation, neurodegeneration, infection, and cancer (3). The molecular machinery of autophagy was largely discovered in yeast and is directed by a number of autophagy-related (Atg) genes.

Vacuolar trafficking and autophagy are controlled by the class III type phosphoinositide 3-kinase (PI3K) Vps34, which generates phosphoinositide-3-phosphate (PtdIns3P) (4,5). Atg18 and Atg21 are two related WD-repeat proteins that bind PtdIns3P via a conserved Phe-Arg-Arg-Gly motif (6,7). It has been shown that Atg18 binds to Atg2 and that this complex is directed to vacuolar membranes by its interaction with PtdIns3P (8). Human orthologs of Atg18 and Atg21 were identified as members of the WD-repeat protein interacting with phosphoinositides (WIPI) family (9-11). WIPI1 (also called WIPI49) and WIPI2 have been shown to translocate from several vacuolar compartments to LC3-positive autophagosomes during autophagy; this translocation may be used as an autophagy marker (10).



Phospho-WIPI2 (Ser413) Antibody is directed at a site that was identified at Cell Signaling Technology (CST) using PhosphoScan, CST's LC-MS/MS platform for modification site discovery. Phosphorylation at Ser413 was discovered using Phospho-MAPK/CDK Substrate motif antibody. Please visit PhosphoSitePlus, CST's modification site knowledgebase, at www.phosphosite.org for more information.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v nonfat dry milk, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting IP: Immunoprecipitation

Cross-Reactivity Key

H: Human M: Mouse R: Rat

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PhosphoScan is a registered trademark of Cell Signaling Technology, Inc.

PhosphoSitePlus is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

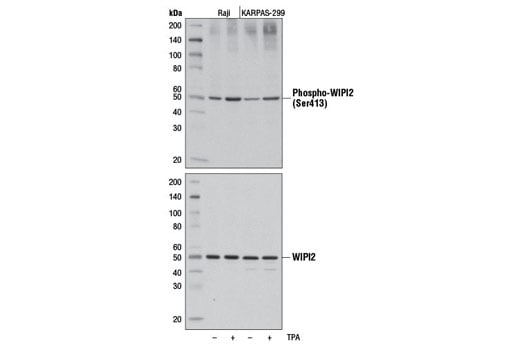

Western blot analysis of extracts from Raji and KARPAS-299 cells, untreated (-) or treated with TPA #4174 (200 nM, 30 min; +) using Phospho-WIPI2 (Ser413) Antibody (upper) or total WIPI2 Antibody #8567 (lower).
Western Blotting Image 1: Phospho-WIPI2 (Ser413) Antibody
Western blot analysis of extracts from KARPAS-299 cells, treated with TPA #4174 (200 nM, 30 min) and then untreated (-) or λ phosphatase and calf intestinal phosphatase (CIP)-treated (+), using Phospho-WIPI2 (Ser413) Antibody (upper) or total WIPI2 Antibody #8567 (lower).
Western Blotting Image 2: Phospho-WIPI2 (Ser413) Antibody

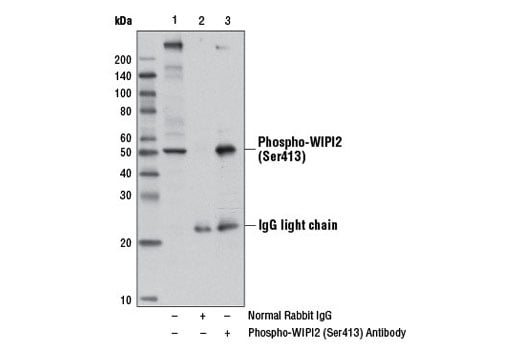

Immunoprecipitation of phospho-WIPI2 (Ser413) from KARPAS-299 cells treated with TPA #4174 (200 nM, 30 min) using Normal Rabbit IgG #2729 (lane 2) or Phospho-WIPI2 (Ser413) Antibody (lane 3). Lane 1 represents 10% input. Western blot was perform using Phospho-WIPI2 (Ser413) Antibody. Mouse Anti-rabbit IgG (Light-Chain Specific) (L57A3) mAb #3677 was used as a secondary antibody.
Immunoprecipitation Image 1: Phospho-WIPI2 (Ser413) Antibody
