Revision 1

#47369

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IHC-Bond, IHC-P, IF-F

Reactivity:
M

Sensitivity:
Endogenous

MW (kDa):
140

Source/Isotype:
Rabbit IgG

UniProt ID:
#P35329

Entrez-Gene Id:
12483

Product Usage Information

This product is the carrier free version of product #94346. All data were generated using the same antibody clone in the standard formulation which contains BSA and glycerol.

This formulation is ideal for use with technologies requiring specialized or custom antibody labeling, including fluorophores, metals, lanthanides, and oligonucleotides. It is not recommended for ChIP, ChIP-seq, CUT&RUN or CUT&Tag assays. If you require a carrier free formulation for chromatin profiling, please contact us. Optimal dilutions/concentrations should be determined by the end user.

BSA and Azide Free antibodies are quality control tested by size exclusion chromatography (SEC) to determine antibody integrity.

Formulation

Supplied in 1X PBS (10 mM Na2HPO4, 3 mM KCl, 2 mM KH2PO4, and 140 mM NaCl (pH 7.8)). BSA and Azide Free.

For standard formulation of this product see product #94346

Storage

Store at -20°C. This product will freeze at -20°C so it is recommended to aliquot into single-use vials to avoid multiple freeze/thaw cycles. A slight precipitate may be present and can be dissolved by gently vortexing. This will not interfere with antibody performance.

Specificity/Sensitivity

CD22 (F9D1W) Rabbit mAb (BSA and Azide Free) recognizes endogenous levels of total CD22 protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Ser467 of mouse CD22 protein.

Background

CD22 (also known as siglec-2) is a member of the sialic acid-binding immunoglobulin-type lectin (Siglec) family of immunomodulatory receptors. CD22 can bind to its ligand α 2,6-linked sialic acid on different cells (trans interaction) as well as on the same cells (cis interaction). CD22 is predominantly expressed on B cells and functions as an inhibitory co-receptor for the B cell receptor (BCR) (1,2). After BCR ligation, the tyrosine kinase Lyn is activated and phosphorylates two distal of the four ITIM motifs in the intracellular carboxy-terminal region of CD22, which then recruit tyrosine phosphatases, including SHP-1, to the plasma membrane, and in turn, they get tyrosine-phosphorylated and activated to damp the signaling pathways initiated by BCR ligation (3,4). CD22 has been actively pursued as a therapeutic target for autoimmune diseases (5). Due to almost exclusive expression on B cells, it is also actively pursued as a therapeutic target for multiple B cell malignancies (6-8).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

W: Western Blotting IHC-Bond: IHC Leica Bond IF-F: Immunofluorescence (Frozen)

Cross-Reactivity Key

H: Human M: Mouse R: Rat Hm: Hamster Mk: Monkey Vir: Virus Mi: Mink C: Chicken Dm: D. melanogaster X: Xenopus Z: Zebrafish B: Bovine Dg: Dog Pg: Pig Sc: S. cerevisiae Ce: C. elegans Hr: Horse GP: Guinea Pig Rab: Rabbit G: Goat All: All Species Expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

CST Logo
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length mouse CD22 protein (mCD22-Myc/DDK; +), using CD22 (F9D1W) Rabbit mAb (upper), Myc-Tag (71D10) Rabbit mAb #2278 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower). Data were generated using the standard formulation of this product.
Western Blotting Image 1: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

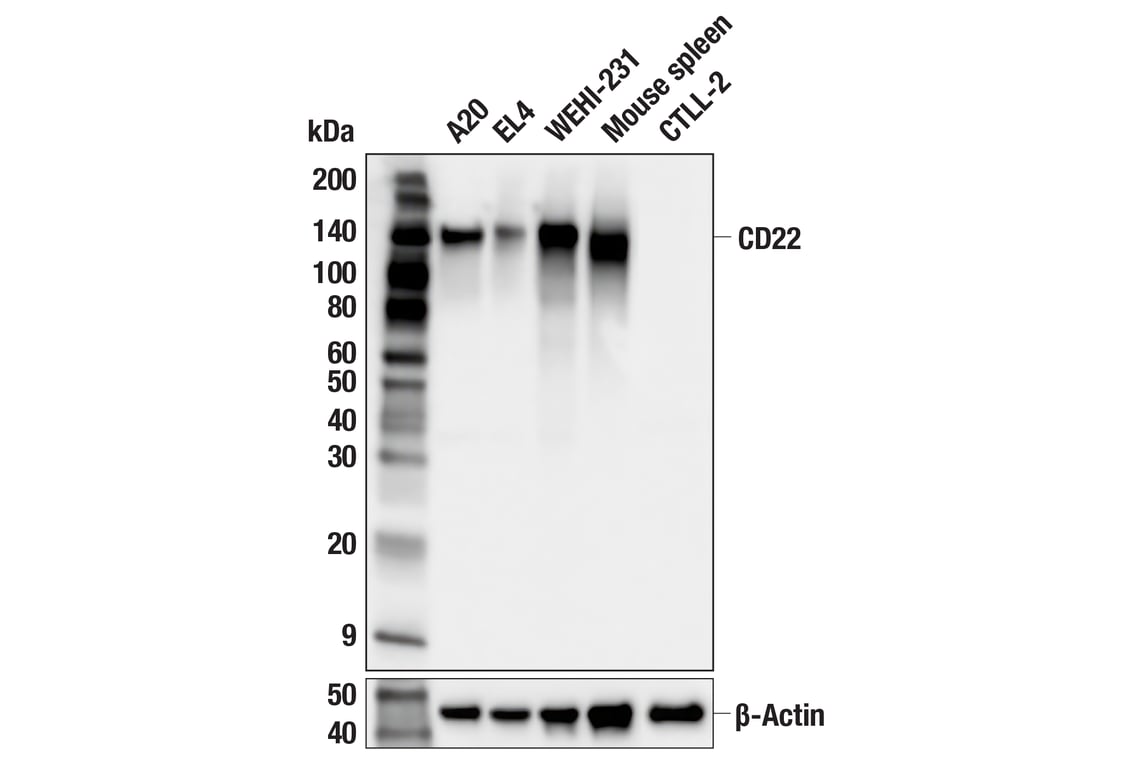

Western blot analysis of extracts from various mouse cell lines and mouse spleen tissue using CD22 (F9D1W) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). Negative expression of CD22 protein in CTLL-2 cells is consistent with the predicted expression pattern. Data were generated using the standard formulation of this product.
Western Blotting Image 2: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)
Immunohistochemical analysis of paraffin-embedded 4T1 syngeneic mammary tumor using CD22 (F9D1W) Rabbit mAb performed on the Leica BOND RX. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 1: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

CST Logo
Immunohistochemical analysis of paraffin-embedded mouse spleen using CD22 (F9D1W) Rabbit mAb performed on the Leica BOND RX. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 2: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

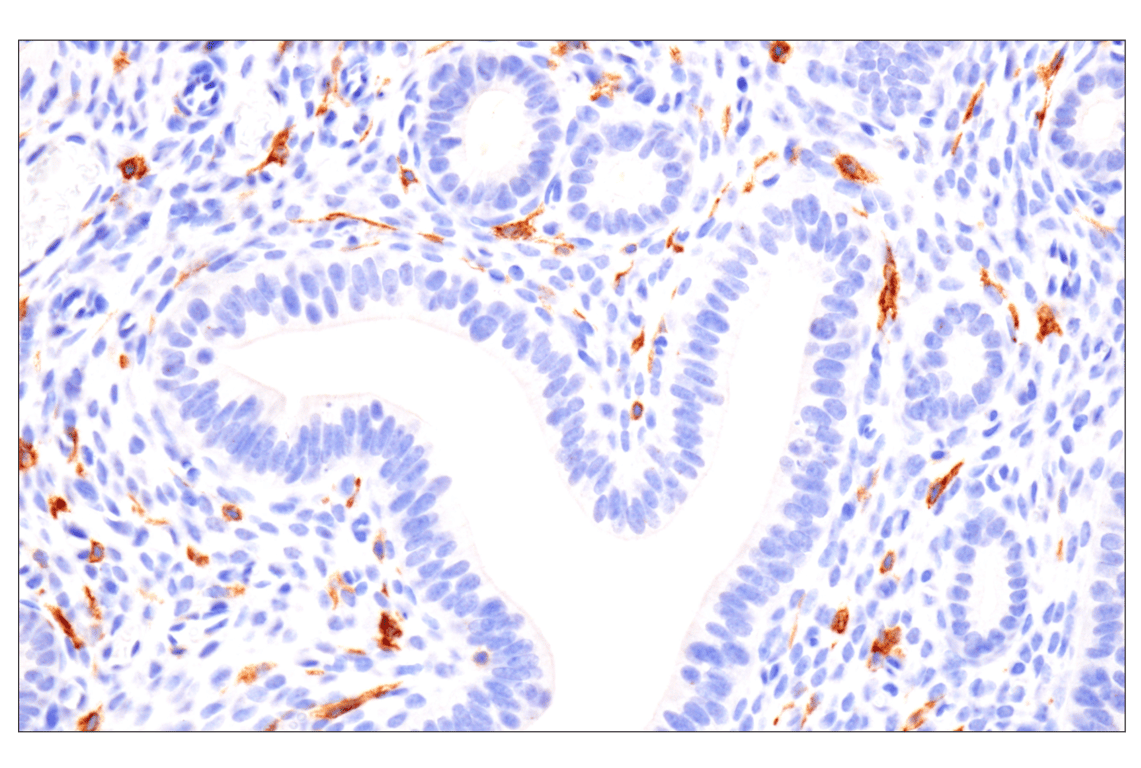

Immunohistochemical analysis of paraffin-embedded mouse endometrium using CD22 (F9D1W) Rabbit mAb performed on the Leica BOND RX. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 3: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

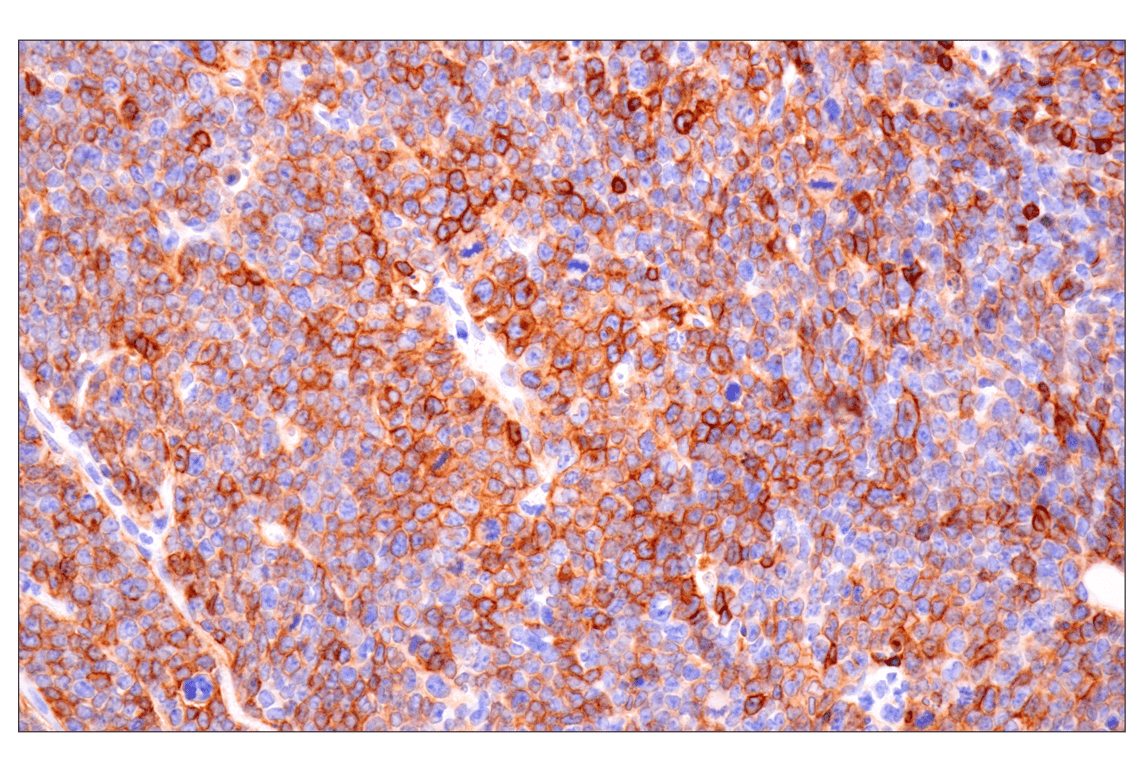

Immunohistochemical analysis of paraffin-embedded A20 syngeneic tumor using CD22 (F9D1W) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 1: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

CST Logo

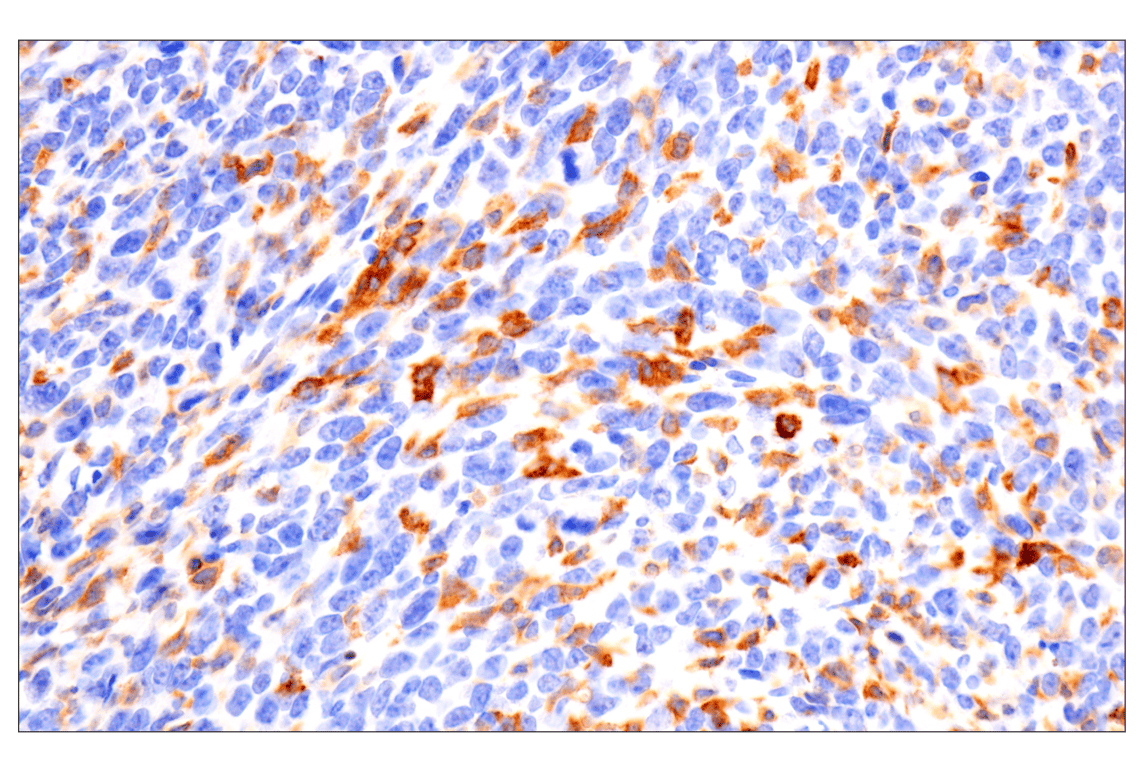

Immunohistochemical analysis of paraffin-embedded MC-38 syngeneic tumor using CD22 (F9D1W) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 2: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

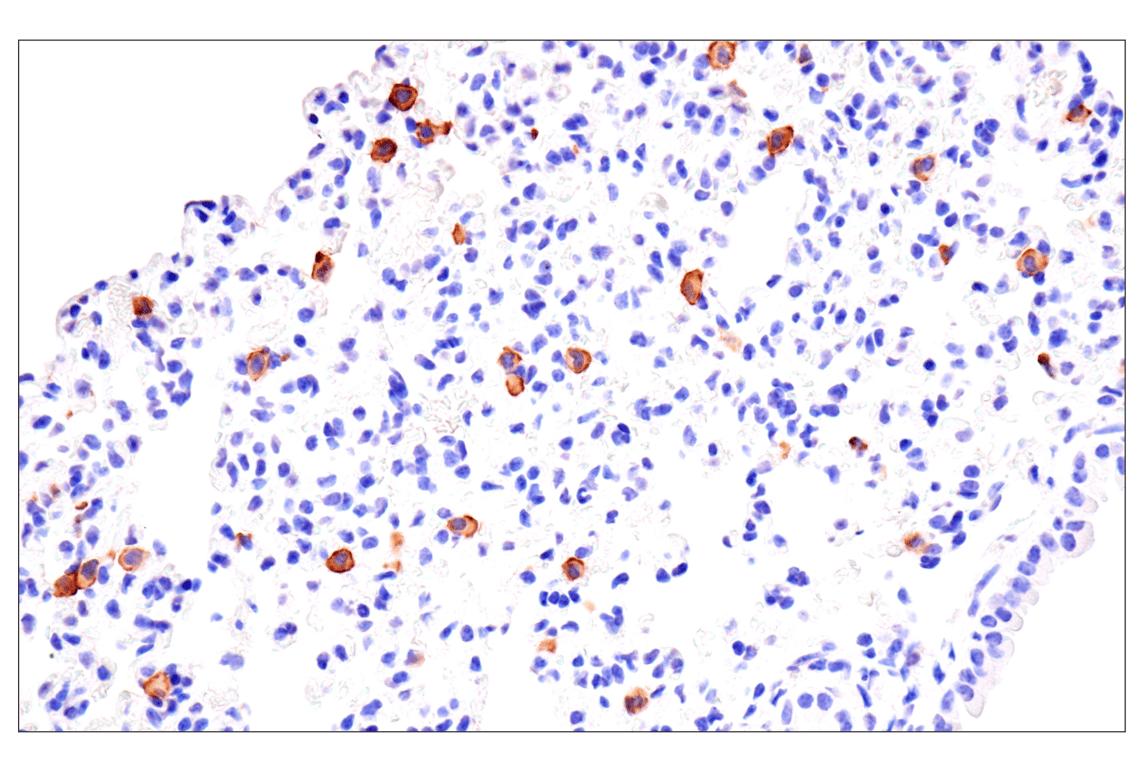

Immunohistochemical analysis of paraffin-embedded mouse lung using CD22 (F9D1W) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 3: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

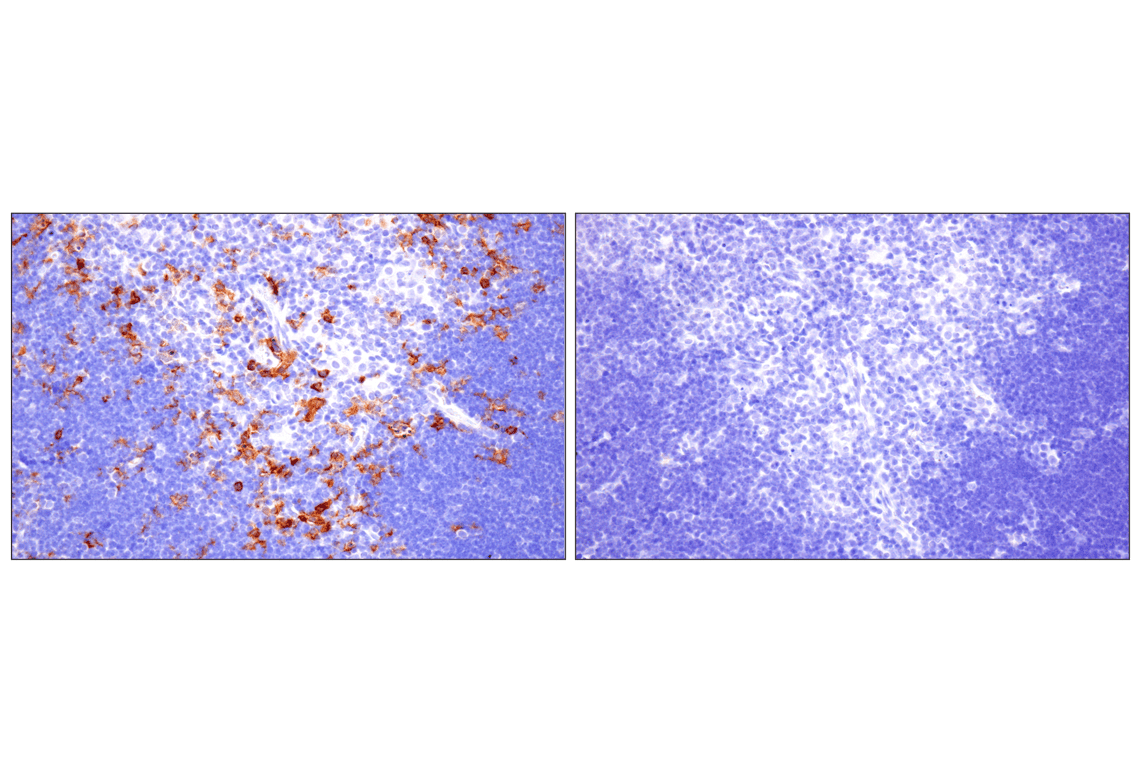

Immunohistochemical analysis of paraffin-embedded mouse thymus using CD22 (F9D1W) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right). Data were generated using the standard formulation of this product.
Immunohistochemistry Image 4: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

CST Logo
Immunohistochemical analysis of paraffin-embedded A20 cell pellet (left, positive) or CTLL-2 cell pellet (right, negative) using CD22 (F9D1W) Rabbit mAb. Data were generated using the standard formulation of this product.
Immunohistochemistry Image 5: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

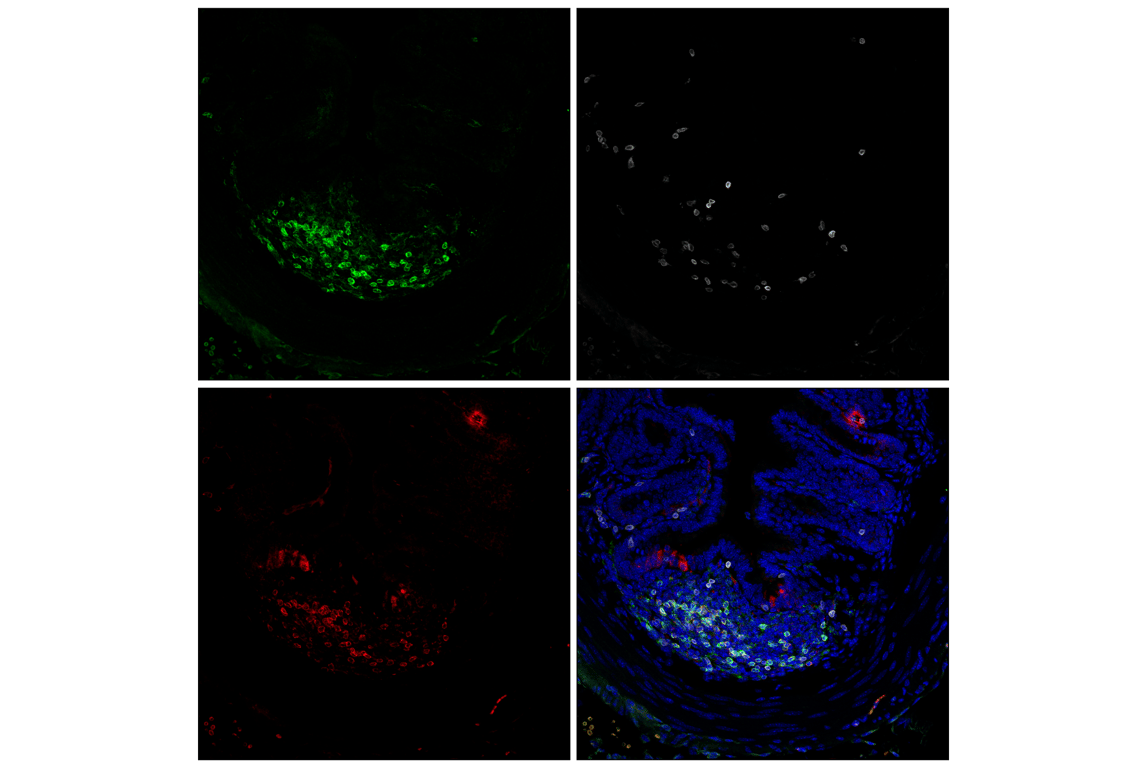

Confocal immunofluorescent analysis of fixed frozen Peyer’s patch in mouse colon labeled with CD22 (F9D1W) Rabbit mAb (green) and co-labeled with CD3 (17A2) Rat mAb (FITC Conjugate) #86603 (gray pseudocolor), CD45R/B220 (RA3-6B2) Rat mAb (redFluor 710 Conjugate) #82984 (red), and ProLong Gold Antifade Reagent with DAPI #8961 (blue). Data were generated using the standard formulation of this product.
Immunofluorescence Image 1: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)

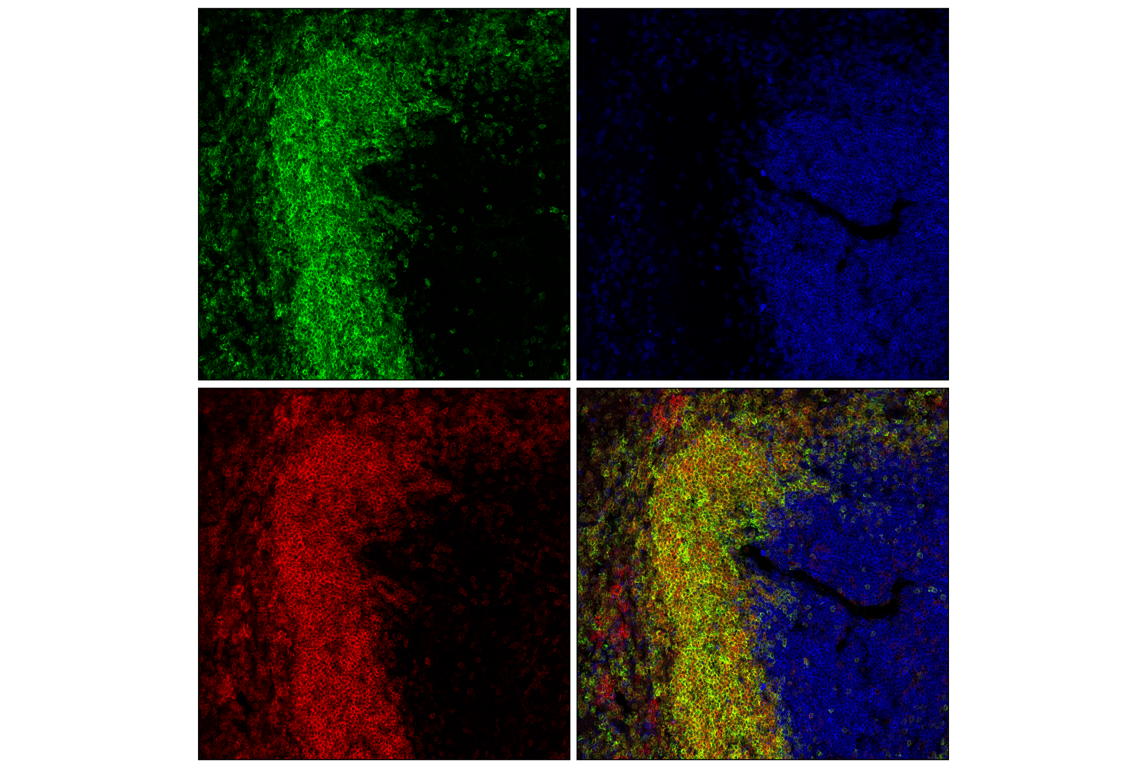

Confocal immunofluorescent analysis of fixed frozen mouse spleen, labeled with CD22 (F9D1W) Rabbit mAb (green) and co-labeled with CD3 (17A2) Rat mAb (FITC Conjugate) #86603 (blue pseudocolor) and CD45R/B220 (RA3-6B2) Rat mAb (redFluor 710 Conjugate) #82984 (red). Data were generated using the standard formulation of this product.
Immunofluorescence Image 2: CD22 (F9D1W) Rabbit mAb (BSA and Azide Free)
