Revision 5

#31254

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, W-S, IP, IHC-P, IF-F, IF-IC, ChIP

Reactivity:
H M R

Sensitivity:
Endogenous

MW (kDa):
62

Source/Isotype:
Rabbit IgG

UniProt ID:
#P01100

Entrez-Gene Id:
2353

Product Usage Information

For optimal ChIP results, use 10 μL of antibody and 10 μg of chromatin (approximately 4 × 106 cells) per IP. This antibody has been validated using SimpleChIP® Enzymatic Chromatin IP Kits.
Application Dilution
Western Blotting 1:1000
Simple Western™ 1:10 - 1:50
Immunoprecipitation 1:100
Immunohistochemistry (Paraffin) 1:100 - 1:400
Immunofluorescence (Frozen) 1:50 - 1:100
Immunofluorescence (Immunocytochemistry) 1:200 - 1:400
Chromatin IP 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #61396.

Specificity/Sensitivity

c-Fos (E2I7R) XP® Rabbit mAb recognizes endogenous levels of total c-Fos protein. The antibody does not cross-react with other Fos proteins, including FosB and FRA1. c-Fos (E2I7R) XP® Rabbit mAb non-specifically stains fixed, frozen mouse spleen by immunofluorescence.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Ala276 of human c-Fos protein.

Background

The Fos family of nuclear oncogenes includes c-Fos, FosB, Fos-related antigen 1 (FRA1), and Fos-related antigen 2 (FRA2) (1). While most Fos proteins exist as a single isoform, the FosB protein exists as two isoforms: full-length FosB and a shorter form, FosB2 (Delta FosB), which lacks the carboxy-terminal 101 amino acids (1-3). The expression of Fos proteins is rapidly and transiently induced by a variety of extracellular stimuli, including growth factors, cytokines, neurotransmitters, polypeptide hormones, and stress. Fos proteins dimerize with Jun proteins (c-Jun, JunB, and JunD) to form Activator Protein-1 (AP-1), a transcription factor that binds to TRE/AP-1 elements and activates transcription. Fos and Jun proteins contain the leucine-zipper motif that mediates dimerization and an adjacent basic domain that binds to DNA. The various Fos/Jun heterodimers differ in their ability to transactivate AP-1 dependent genes. In addition to increased expression, phosphorylation of Fos proteins by Erk kinases in response to extracellular stimuli may further increase transcriptional activity (4-6). Phosphorylation of c-Fos at Ser32 and Thr232 by Erk5 increases protein stability and nuclear localization (5). Phosphorylation of FRA1 at Ser252 and Ser265 by Erk1/2 increases protein stability and leads to overexpression of FRA1 in cancer cells (6). Following growth factor stimulation, expression of FosB and c-Fos in quiescent fibroblasts is immediate, but very short-lived, with protein levels dissipating after several hours (7). FRA1 and FRA2 expression persists longer, and appreciable levels can be detected in asynchronously growing cells (8). Deregulated expression of c-Fos, FosB, or FRA2 can result in neoplastic cellular transformation; however, Delta FosB lacks the ability to transform cells (2,3).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting IP: Immunoprecipitation IHC-P: Immunohistochemistry (Paraffin) IF-F: Immunofluorescence (Frozen) ChIP: Chromatin IP

Cross-Reactivity Key

H: Human M: Mouse R: Rat Hm: Hamster Mk: Monkey Vir: Virus Mi: Mink C: Chicken Dm: D. melanogaster X: Xenopus Z: Zebrafish B: Bovine Dg: Dog Pg: Pig Sc: S. cerevisiae Ce: C. elegans Hr: Horse GP: Guinea Pig Rab: Rabbit G: Goat All: All Species Expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

SimpleChIP is a registered trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

CST Logo
Western blot analysis of extracts from HeLa and RAW 264.7 cells serum-starved overnight, untreated (-) or stimulated with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174 (4 hr; +), using c-Fos (E2I7R) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

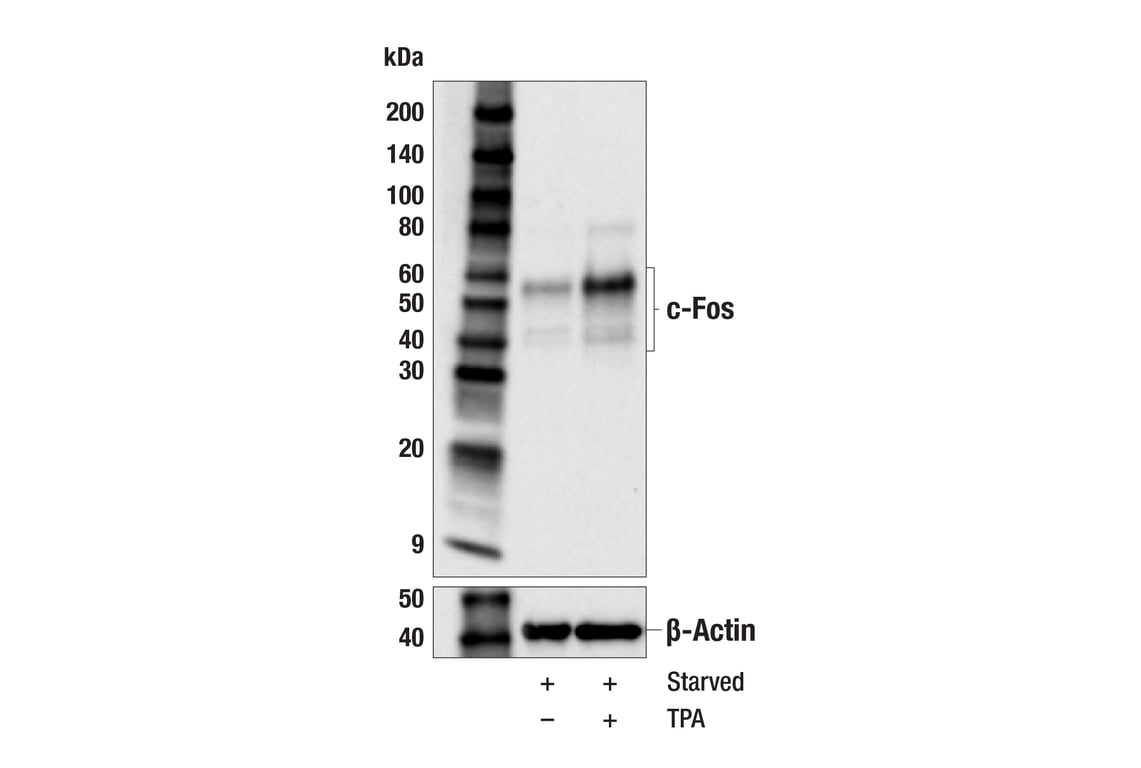

Western blot analysis of extracts from H-4-II-E cells serum-starved overnight, untreated (-) or stimulated with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174 (4 hr; +), using c-Fos (E2I7R) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 2: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

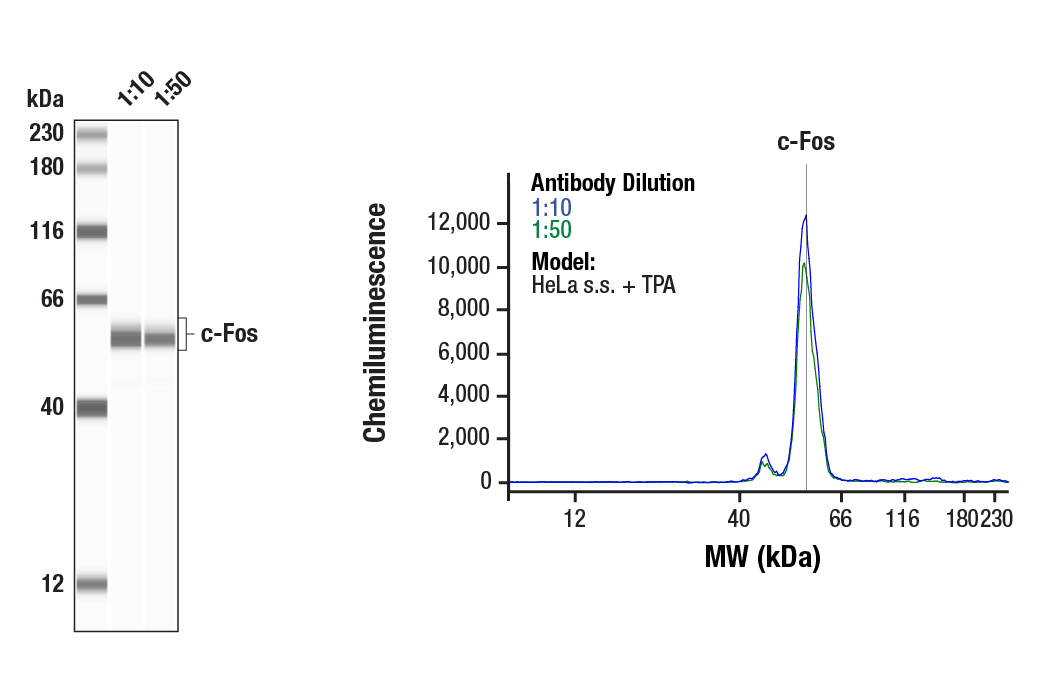

Simple Western™ analysis of lysates (0.1 mg/mL) from serum-starved HeLa cells treated with TPA (200 nM, 4 hours) using c-Fos (E2I7R) XP® Rabbit mAb #31254. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
Western Blotting Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

CST Logo

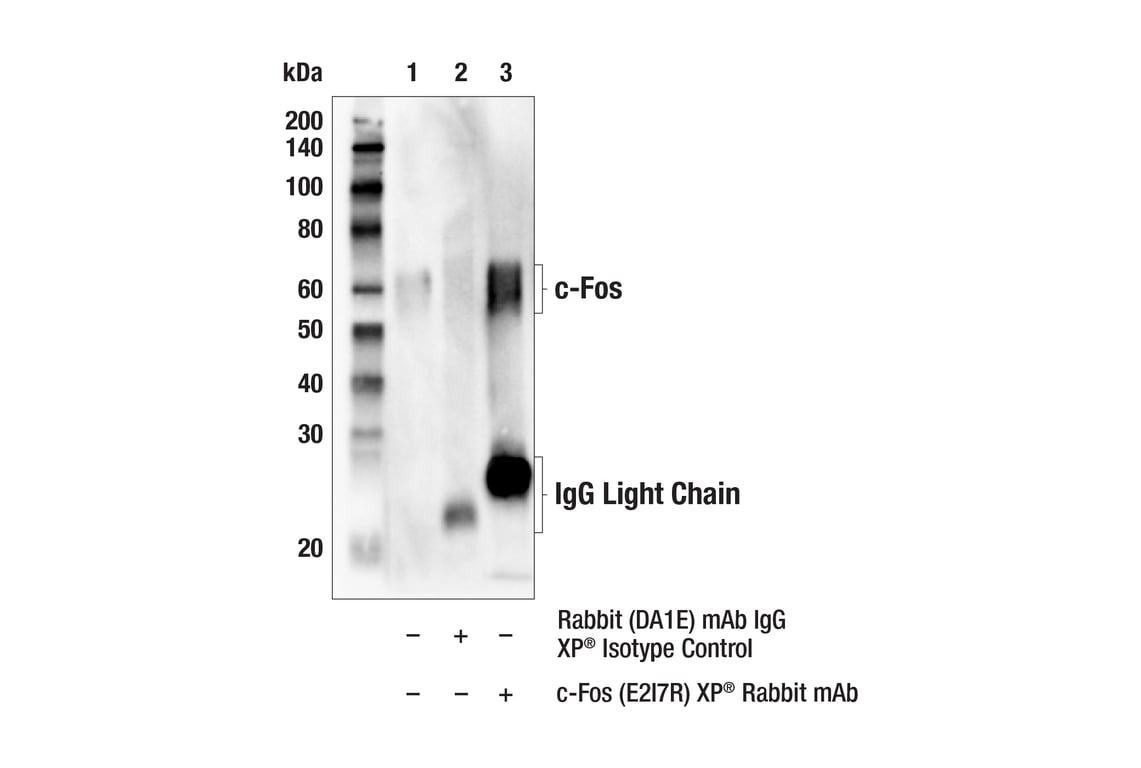

Immunoprecipitation of c-Fos protein from HeLa cell extracts that were serum-starved overnight and stimulated for 4 hours with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is c-Fos (E2I7R) XP® Rabbit mAb. Western blot analysis was performed using c-Fos (E2I7R) XP® Rabbit mAb. Mouse Anti-Rabbit IgG (Light-Chain Specific) (D4W3E) mAb (HRP Conjugate) #93702 was used as a secondary antibody.
Immunoprecipitation Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded human esophageal adenocarcinoma using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

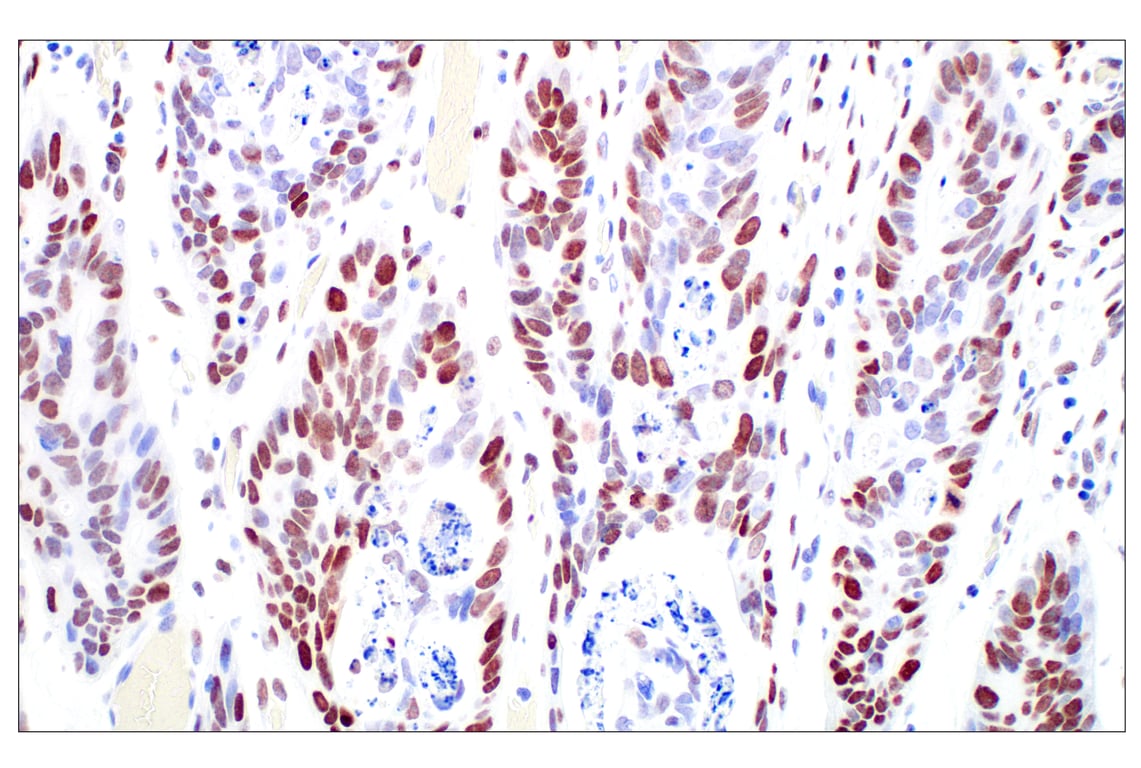

Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 2: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

CST Logo

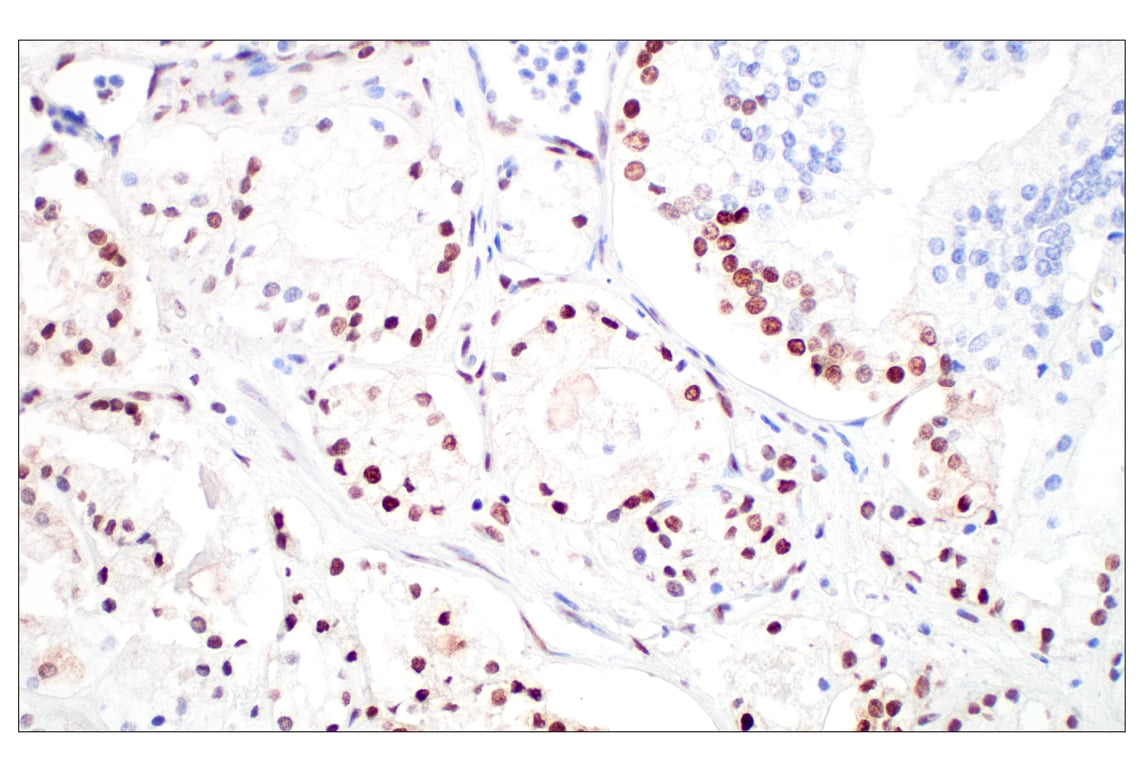

Immunohistochemical analysis of paraffin-embedded human prostate adenocarcinoma using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 3: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded normal human colon using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 4: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded normal human gallbladder using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 5: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

CST Logo

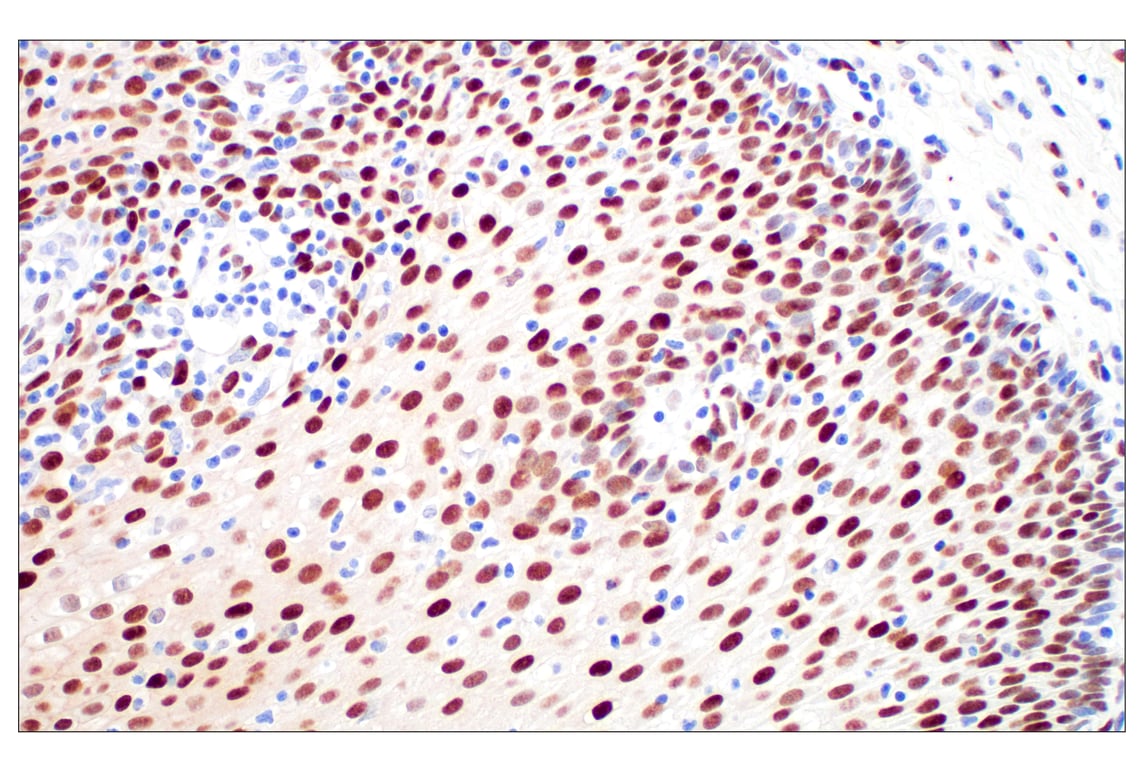

Immunohistochemical analysis of paraffin-embedded normal human esophagus using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 6: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

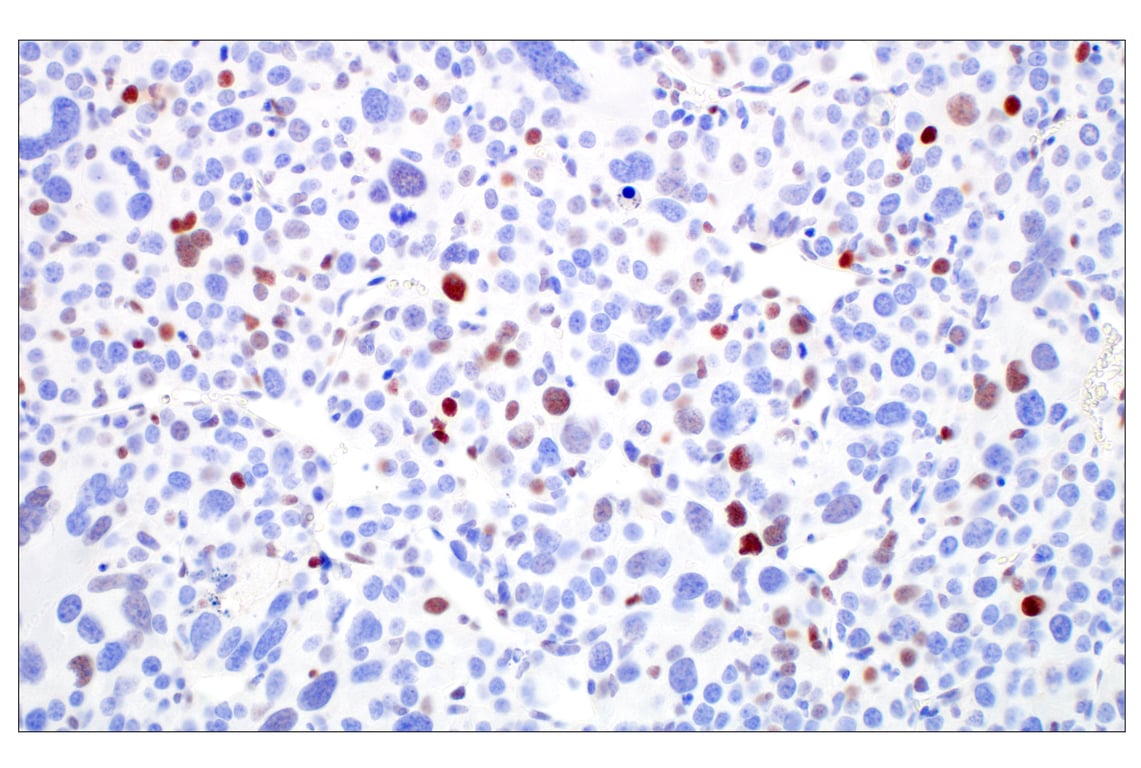

Immunohistochemical analysis of paraffin-embedded 4T1 syngeneic tumor using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 7: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

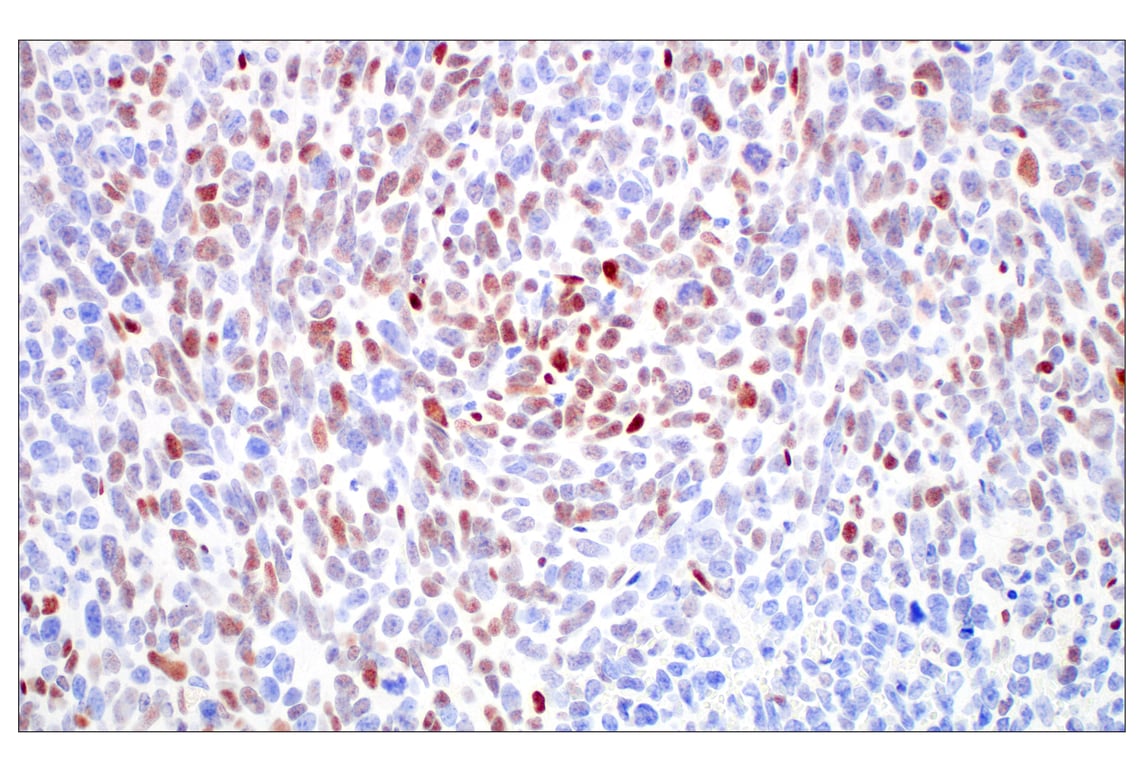

Immunohistochemical analysis of paraffin-embedded Renca syngeneic tumor using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 8: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

CST Logo
Immunohistochemical analysis of paraffin-embedded mouse brain using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 9: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded mouse colon using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 10: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded HeLa cell pellets, serum-starved overnight then either untreated (left) or treated with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174 (200 nM, 4 hr; right), using c-Fos (E2I7R) XP® Rabbit mAb.
Immunohistochemistry Image 11: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

CST Logo

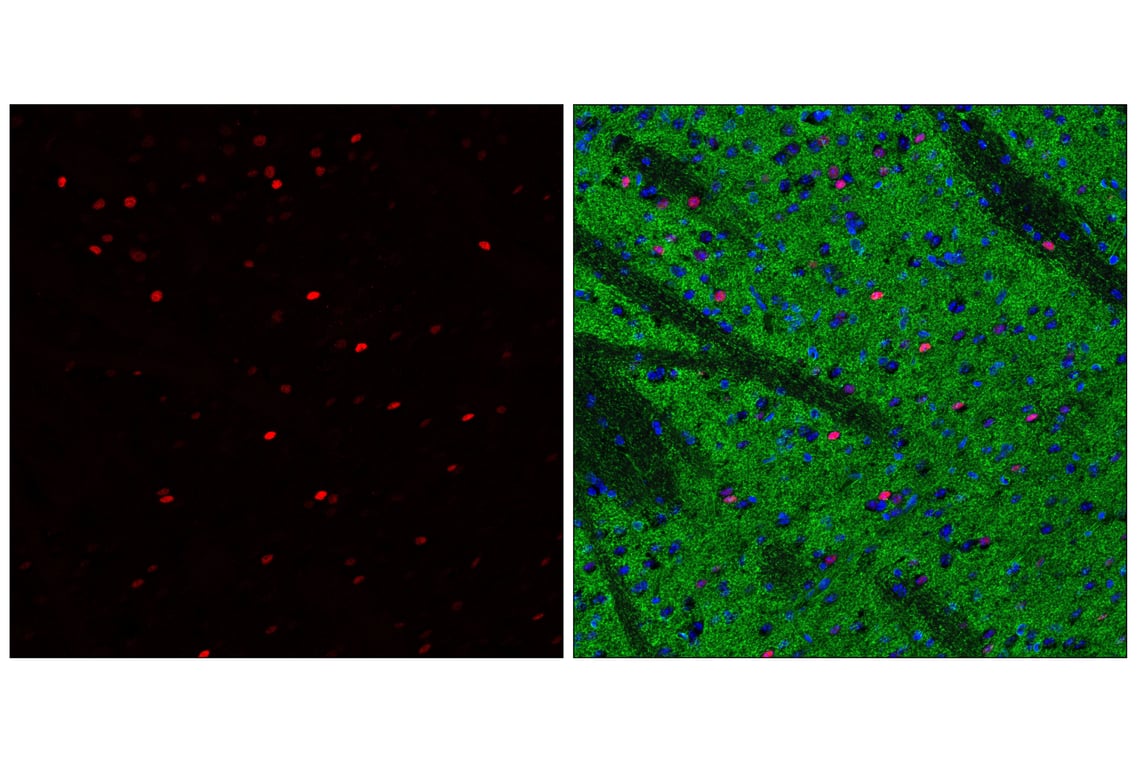

Confocal immunofluorescent analysis of fixed frozen mouse striatum labeled with c-Fos (E2I7R) XP® Rabbit mAb (left, red). Free secondary binding sites were then blocked with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 prior to co-labeling with EAAT2 (E3P5K) Rabbit mAb (Alexa Fluor® 488 Conjugate) #10767 (right, green) and DAPI #4083 (right, blue).
Immunofluorescence Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

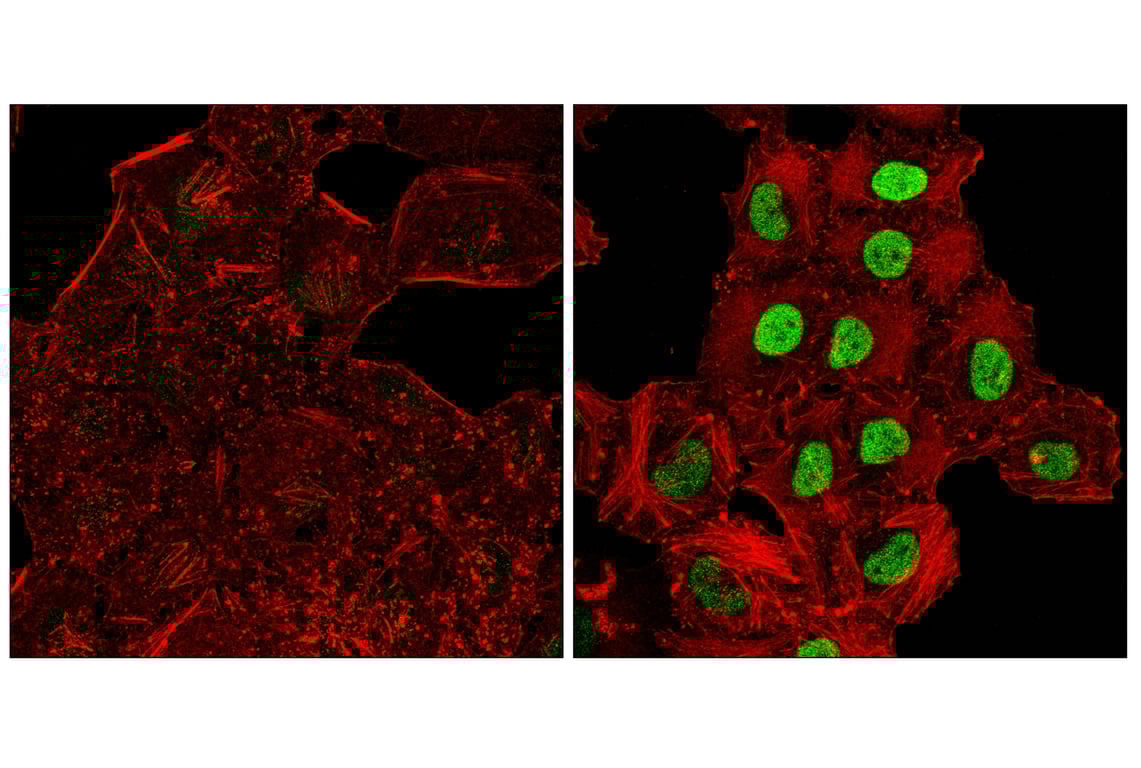

Confocal immunofluorescent analysis of HeLa cells, serum-starved (left) or serum-starved and treated with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174 (200 nM, 4 hr; right), using c-Fos (E2I7R) XP® Rabbit mAb (green) and DyLight 650 Phalloidin #12956 (red).
Immunofluorescence Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb

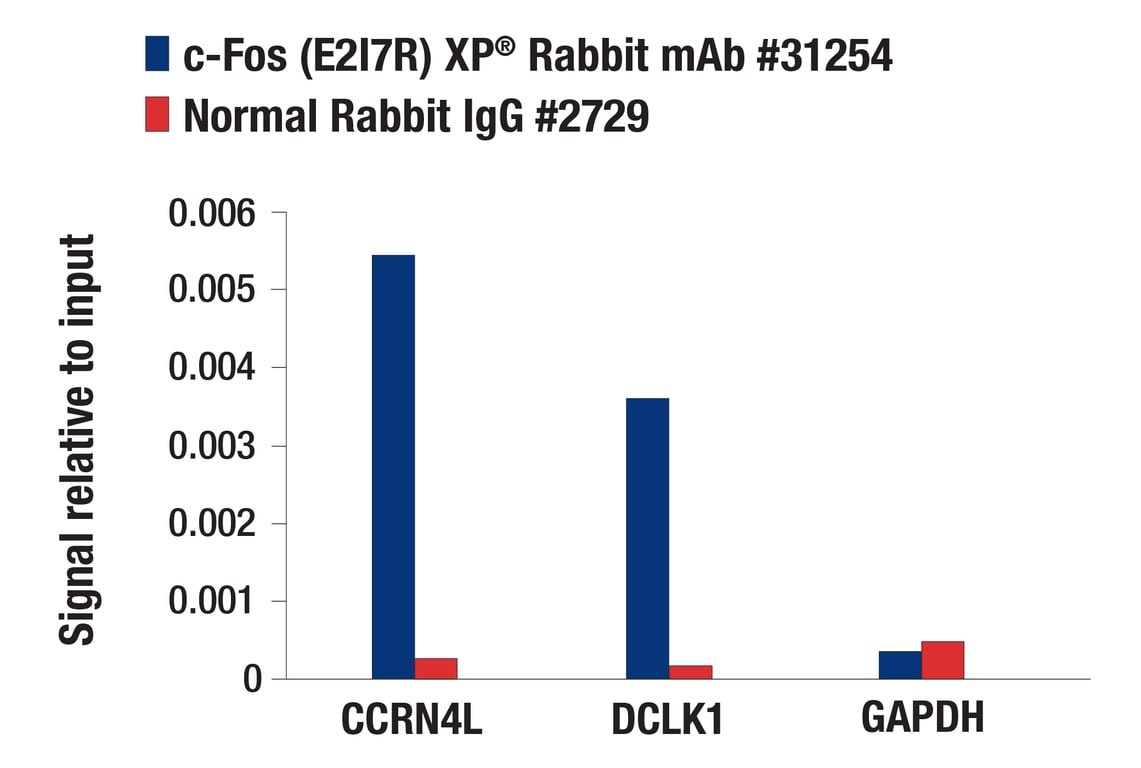

Chromatin immunoprecipitations were performed with cross-linked chromatin from PC-12 cells starved overnight and treated with human β-NGF (50 ng/mL, 2 hr) and either c-Fos (E2I7R) XP® Rabbit mAb or Normal Rabbit IgG #2729, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP® Rat CCRN4L Promoter Primers #7983, rat DCLK1 promoter primers, and SimpleChIP® Rat GAPDH Promoter Primers #7964. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Chromatin Immunoprecipitation Image 1: c-Fos (E2I7R) XP<sup>®</sup> Rabbit mAb
