Revision 2

#12298

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb2197100 µl62 kDaRabbit IgG
Chk2 (D9C6) Rabbit mAb6334100 µl62 kDaRabbit IgG

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

UniProt ID:
#O96017

Entrez-Gene Id:
11200

Description

PhosphoPlus® Duets from Cell Signaling Technology (CST) provide a means to assess protein activation status. Each Duet contains an activation-state and total protein antibody to your target of interest. These antibodies have been selected from CST's product offering based upon superior performance in specified applications.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Chk2 is the mammalian orthologue of the budding yeast Rad53 and fission yeast Cds1 checkpoint kinases (1-3). The amino-terminal domain of Chk2 contains a series of seven serine or threonine residues (Ser19, Thr26, Ser28, Ser33, Ser35, Ser50, and Thr68) each followed by glutamine (SQ or TQ motif). These are known to be preferred sites for phosphorylation by ATM/ATR kinases (4,5). After DNA damage by ionizing radiation (IR), UV irradiation, or hydroxyurea treatment, Thr68 and other sites in this region become phosphorylated by ATM/ATR (5-7). The SQ/TQ cluster domain, therefore, seems to have a regulatory function. Phosphorylation at Thr68 is a prerequisite for the subsequent activation step, which is attributable to autophosphorylation of Chk2 at residues Thr383 and Thr387 in the activation loop of the kinase domain (8).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PhosphoPlus is a registered trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

CST Logo
Western blot analysis of extracts from HeLa cells, untreated or UV-treated, using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 1: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet

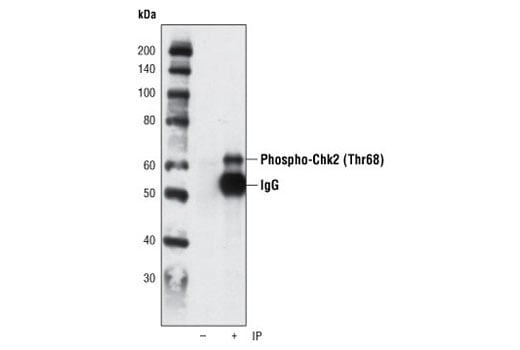

Immunoprecipitation of phospho-chk2 from UV-treated HT29 cells using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb followed by western blot using the same antibody.
undefined Image 2: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet

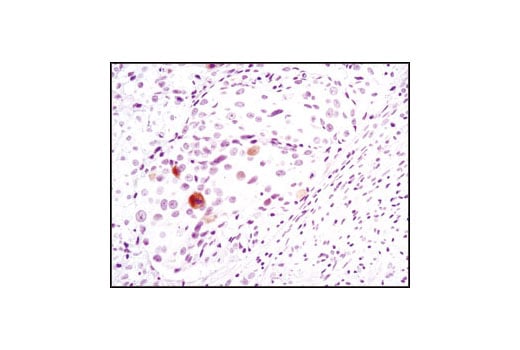

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 3: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

CST Logo

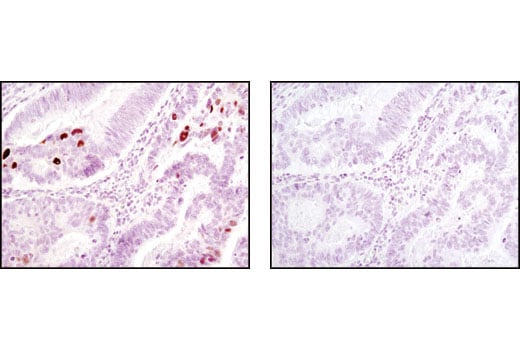

Immunohistochemical analysis of paraffin-embedded human colon carcinoma, control (left) or λ phosphatase-treated (right), using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 4: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet

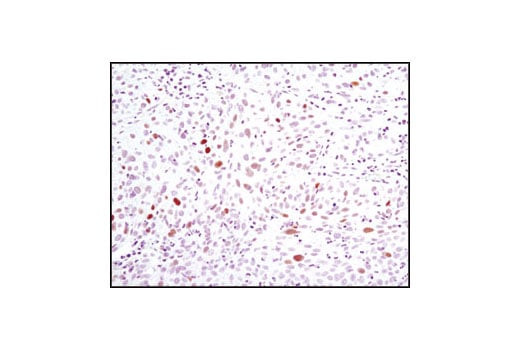

Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 5: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet
Flow cytometric analysis of HeLa cells, untreated (blue) or treated with UV (100mJ/cm2, 2 hr recovery; green) using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) was used as a secondary antibody.
undefined Image 6: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

CST Logo

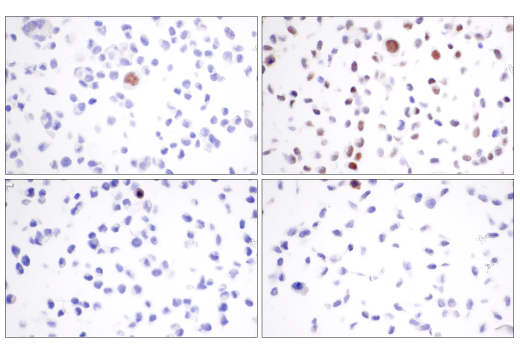

Immunohistochemical analysis of paraffin-embedded HCT 116 cell pellets, control (top) or CRISPR/Cas9 Chk2 knockout (KO) (bottom), untreated (left) or UV-treated (100 mJ, 2 hr recovery, right) using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb.
undefined Image 7: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet

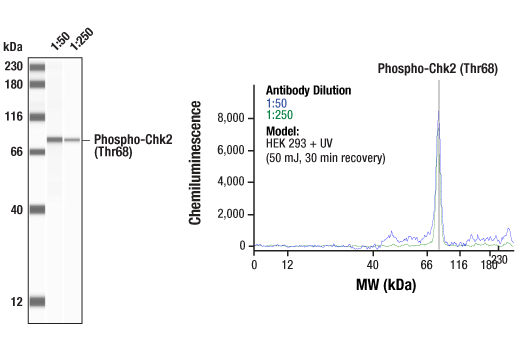

Simple Western™ analysis of lysates (0.1 mg/mL) from HEK 293 cells treated with UV (50 mJ, 30 min recovery) using Phospho-Chk2 (Thr68) (C13C1) Rabbit mAb #2197. The virtual lane view (left) shows a single target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 8: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet
Western blot analysis of extracts from control HeLa cells (lane 1) or HeLa cells with a targeted mutation in the gene encoding Chk2 (lane 2) using Chk2 (D9C6) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The change in Chk2 molecular weight in the mutated HeLa cells confirms the specificity of the antibody for Chk2.
undefined Image 9: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

CST Logo

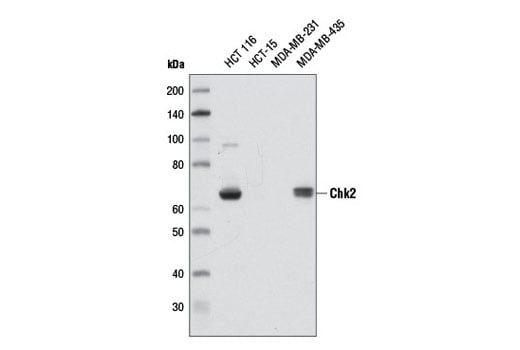

Western blot analysis of extracts from various cell lines using Chk2 (D9C6) Rabbit mAb.
undefined Image 10: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet

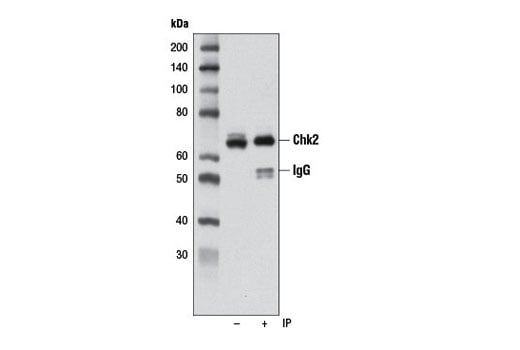

Immunoprecipitation of Chk2 from 293 cell extracts using Chk2 (D9C6) Rabbit mAb (lane 2). Western blot detection was performed using the same antibody. Lane 1 is 10% input.
undefined Image 11: PhosphoPlus<sup>®</sup> Chk2 (Thr68) Antibody Duet
